Interior Wood Doors
Core & Frame Construction
Explore the references and select an image to include it in your enquiry.
Specifications & options
View images ↓Reference specifications
- Optional oak panel
- 8+1 mm
- Optional plywood panel
- 4 mm
- Optional moisture-resistant panel
- 4 mm
- Standard architrave
- Plywood architrave
- Optional architrave
- Oak architrave (additional cost; confirm thickness)
- Frame reference
- Oak frame
- Core options
- Graphene + oak core / engineered solid-wood core board / solid Chinese fir core / three-dimensional engineered acoustic core board
- Slim aluminum-wood frame variants
- Flush on the outer face / flush on the inner face; both inward opening with matching aluminum frames
- Illustrated door leaf thickness
- 50 mm
- Aluminum thickness: outer-face flush variant
- 2 mm
Based on the Interior Wood Door Catalog, PDF pages 9–10. Confirm finishes against physical samples. Overall frame dimensions are not opening or leaf dimensions.
Reference details
4 visual references

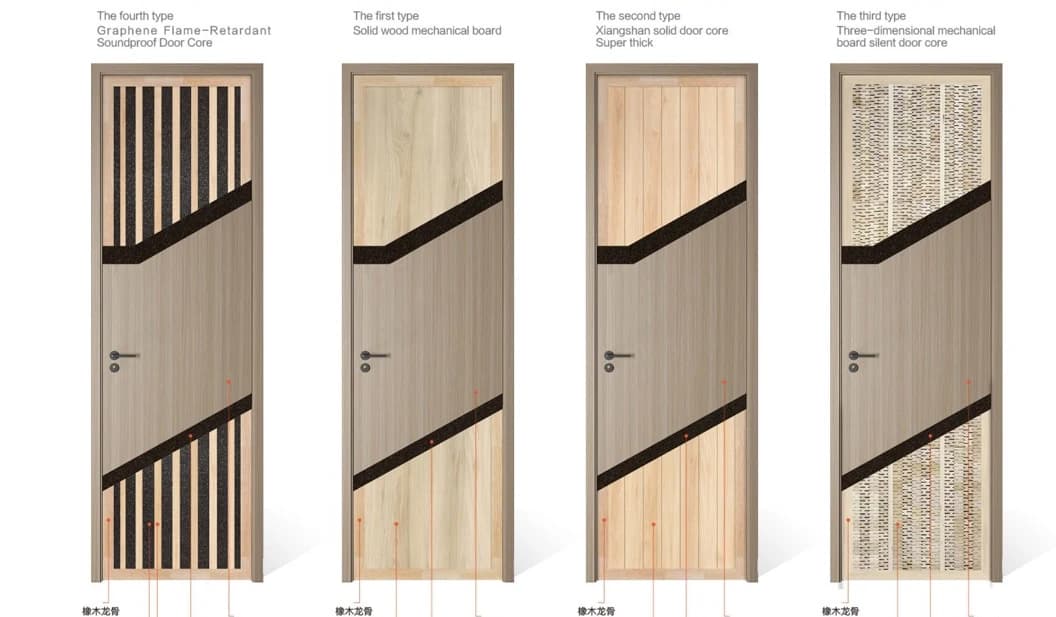

Four core constructions

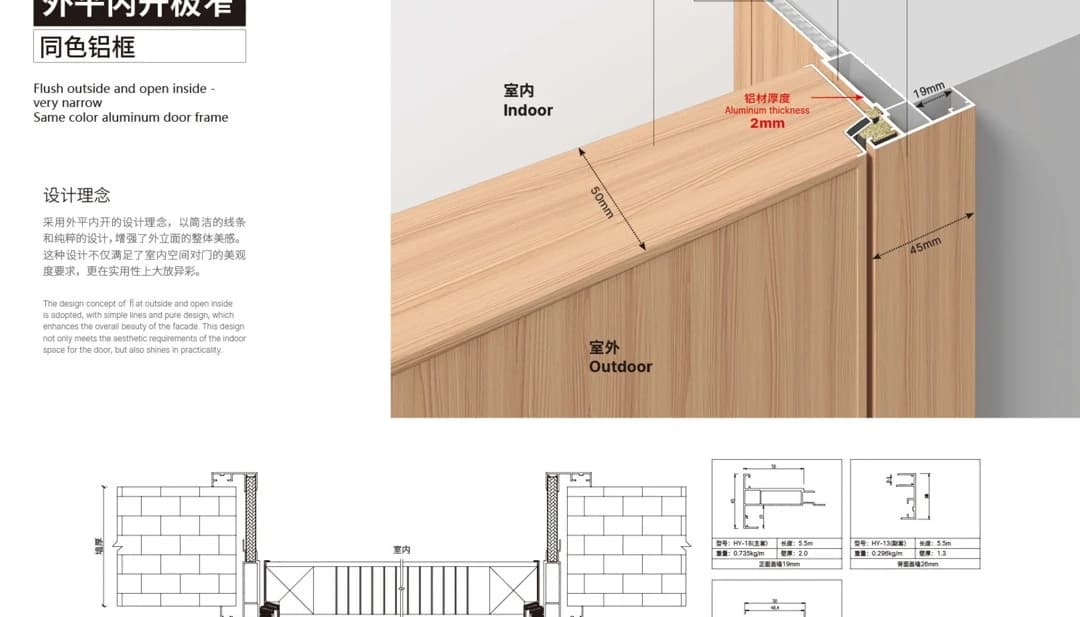

Click image to enlargeSlim frame: outer-face flush, inward opening
Click image to enlargeSlim frame: inner-face flush, inward opening
Click image to enlargeImages and performance values are reproduced from the catalog. Please confirm configuration, test conditions and suitability.
Start with the design you like.
Share dimensions, quantities or drawings to refine your selection.
