Side-Mounted Aluminum Handrails

Golden Silk Coral

Design, construction and specifications

Designs & details

2 visual references

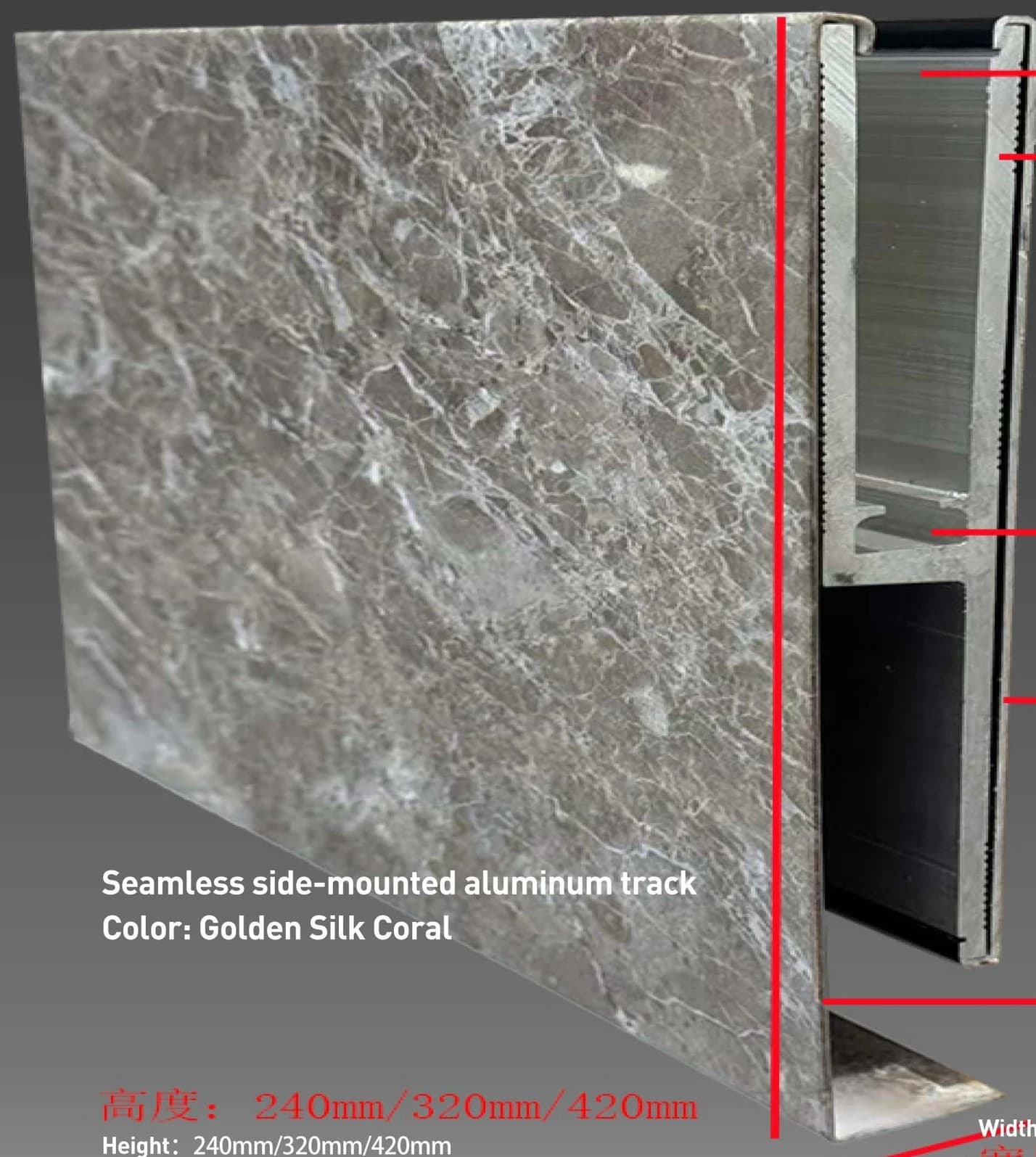

Finish name: Golden Silk Coral
Profile wall thickness: 5.0 mm
Glass channel opening: 18 mm
Optional glazing: 6+6 mm laminated glass; confirm interlayer thickness separately
Illustrated components: Inner and outer cover plates, glass gaskets, clamps, expansion bolts, end strips and corner strips
Lighting provision: LED strip groove provided; confirm the LED strip separately
Verification note: The section drawing marks heights of 220 / 320 / 420 mm and a width of 32 mm; finish sheets mark 240 / 320 / 420 mm and 30 mm. Confirm the actual section before ordering.

Specification source: Side-Mounted Aluminum Handrails catalog, pages 3, 4. Finish names are descriptive; confirm against an approved sample.

Share dimensions, quantities or drawings for configuration advice and a quotation.

Images and performance values are reproduced from the catalog. Please confirm configuration, test conditions and suitability.
