12 / 15 mm tempered glass, or 6+6 / 8+8 mm laminated tempered glass; confirm interlayers separately
Illustrated glass clamping range
12–18 mm
Connection variants
90° corner / 180° inline / wall-end
Base shoe option
105 surface-mounted base shoe with optional LED strip
Section dimensions
Corner: 50×50 mm; inline: 50×26 mm; wall-end: 30×27 mm
Illustrated components
Screw clamping, concealed adjustment-hole covers and dedicated gaskets
Application reference

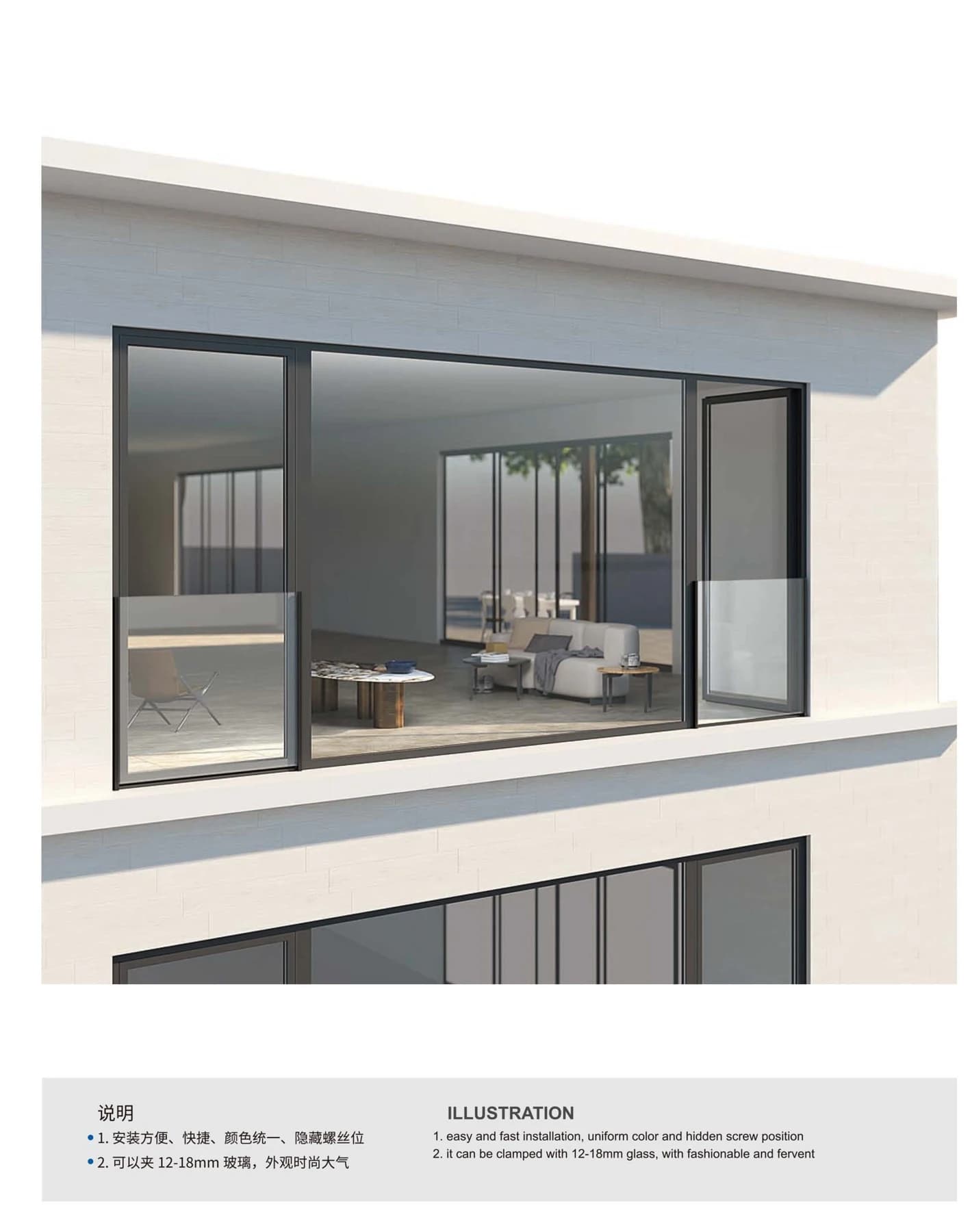

Glass railings and guards for full-height windows
Verification note
These are the configurations illustrated in the corresponding catalog. Slot widths are not total glass thicknesses. Confirm finished height, spans, glass interlayers and installation components for the project.
Specification source: Glass Railing Profiles & Accessories catalog, pages 31, 32. Finish names are descriptive; confirm against an approved sample.
