12 / 15 mm tempered glass, or 6+6 / 8+8 mm laminated tempered glass; confirm interlayers separately
Illustrated glass clamping range
12–18 mm
Connection variants
90° corner / 180° inline / wall-end
Base shoe options
46 / 105 surface-mounted base shoes

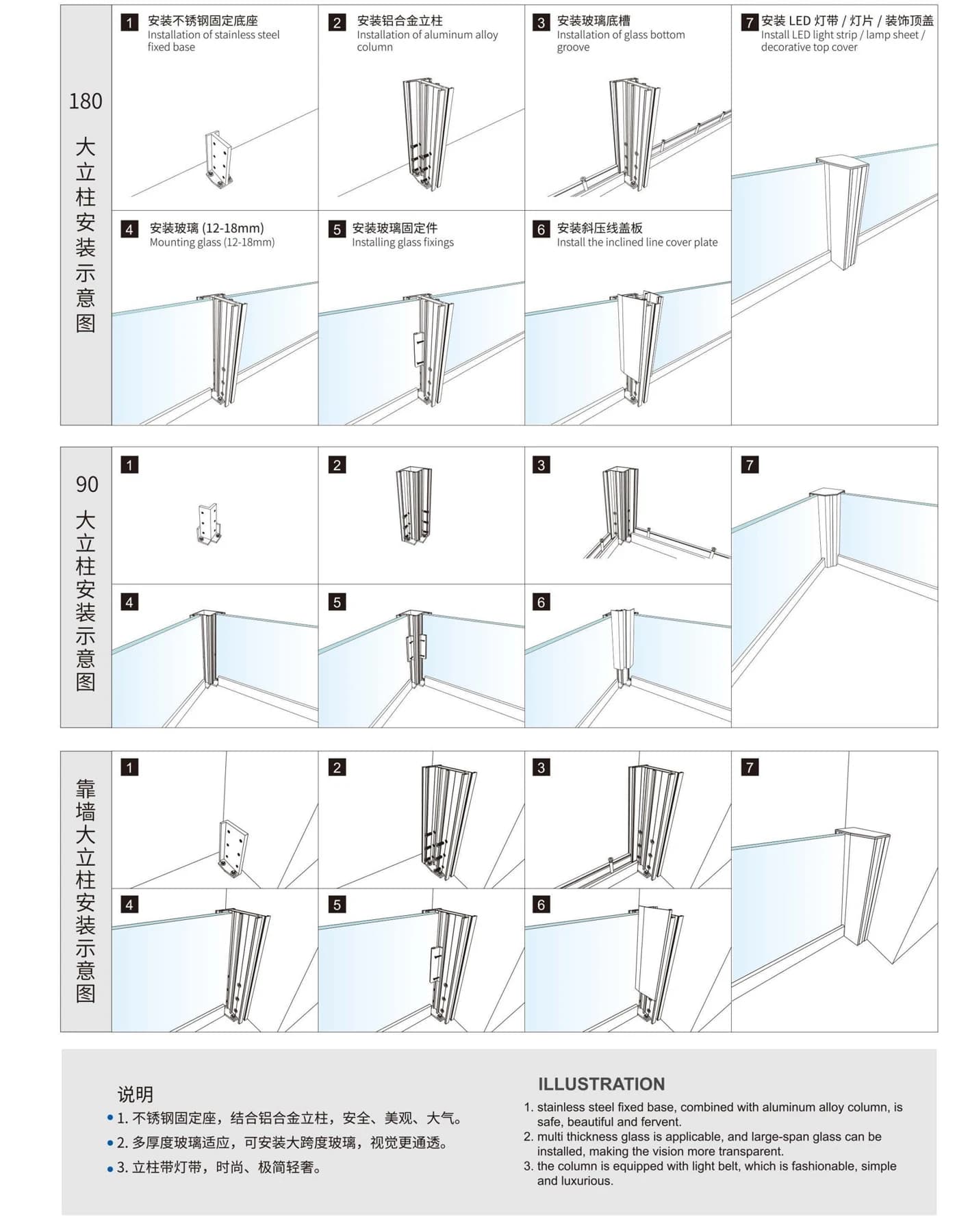

Illustrated components
Stainless steel fixing bases, glass clamps, aluminum posts, matching zinc alloy caps, LED strips and diffusers
Illustrated sections
Corner: 80.8×80.8 mm; wall-end: 46×90 mm
Verification note
These are the configurations illustrated in the corresponding catalog. Slot widths are not total glass thicknesses. Confirm finished height, spans, glass interlayers and installation components for the project.
Specification source: Glass Railing Profiles & Accessories catalog, pages 29, 30. Finish names are descriptive; confirm against an approved sample.
