Top Rails for Glass Railings

Design, construction and specifications

Designs & details

12 visual references

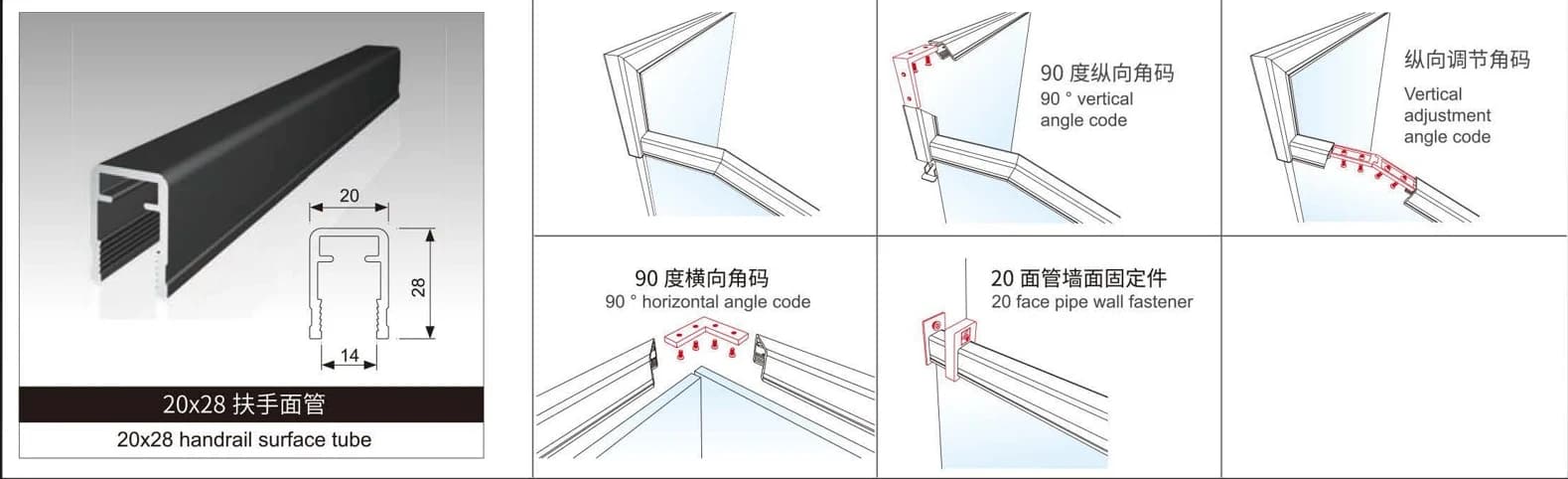

20×28 top rail / slot: 20 × 28 / 14 mm

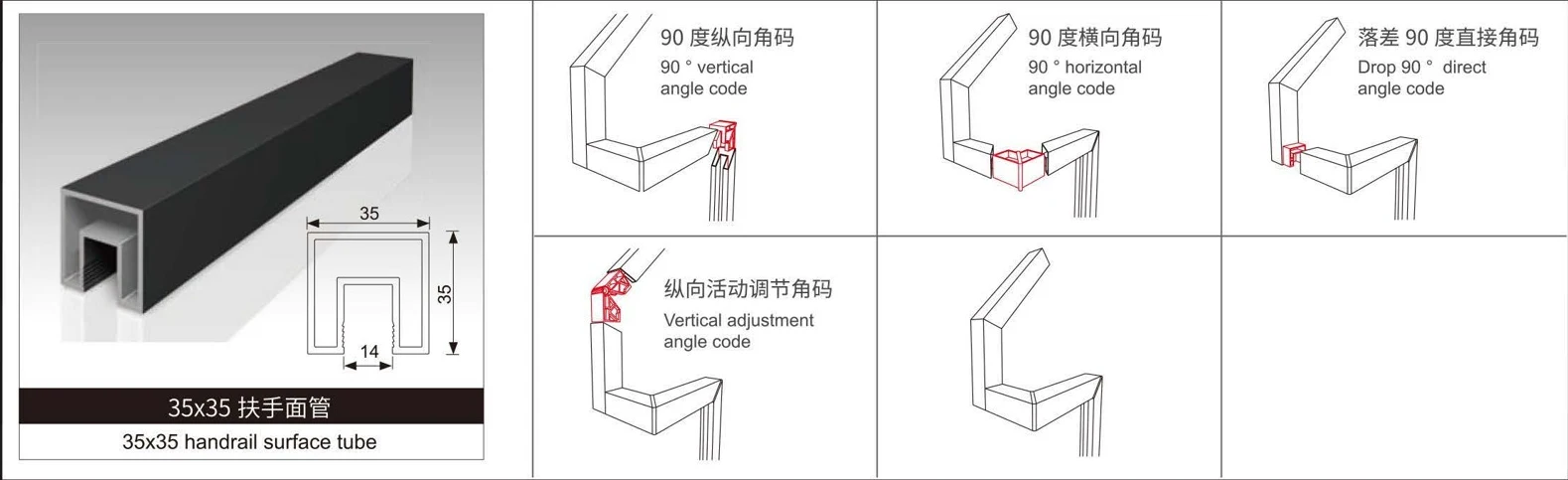

35×35 top rail / slot: 35 × 35 / 14 mm

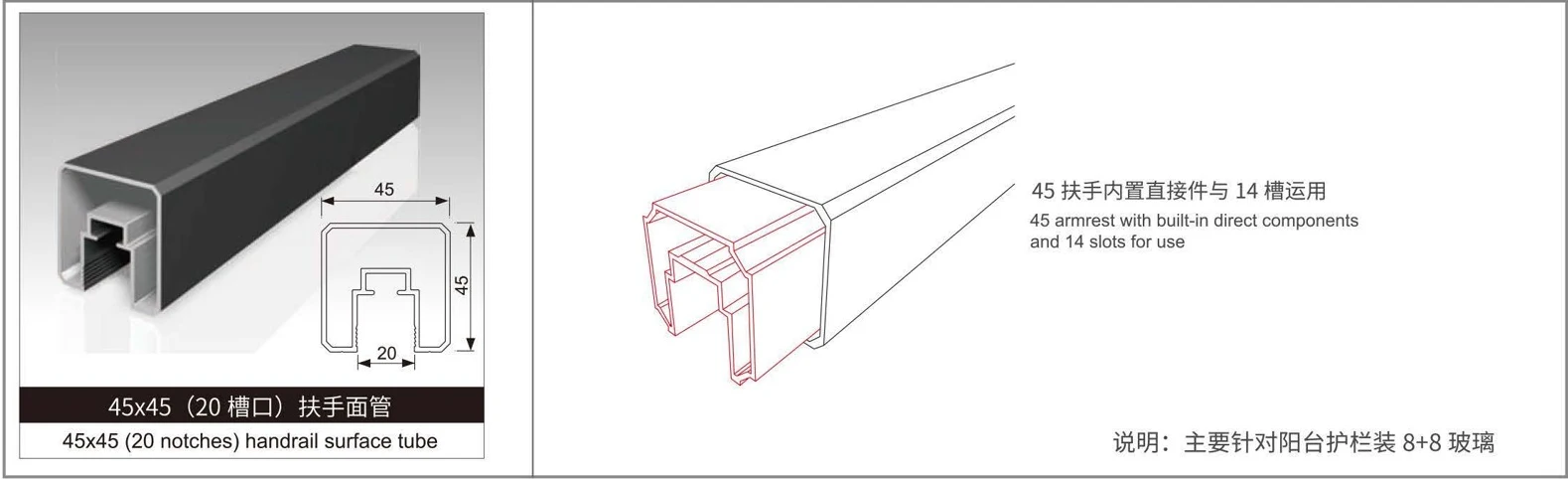

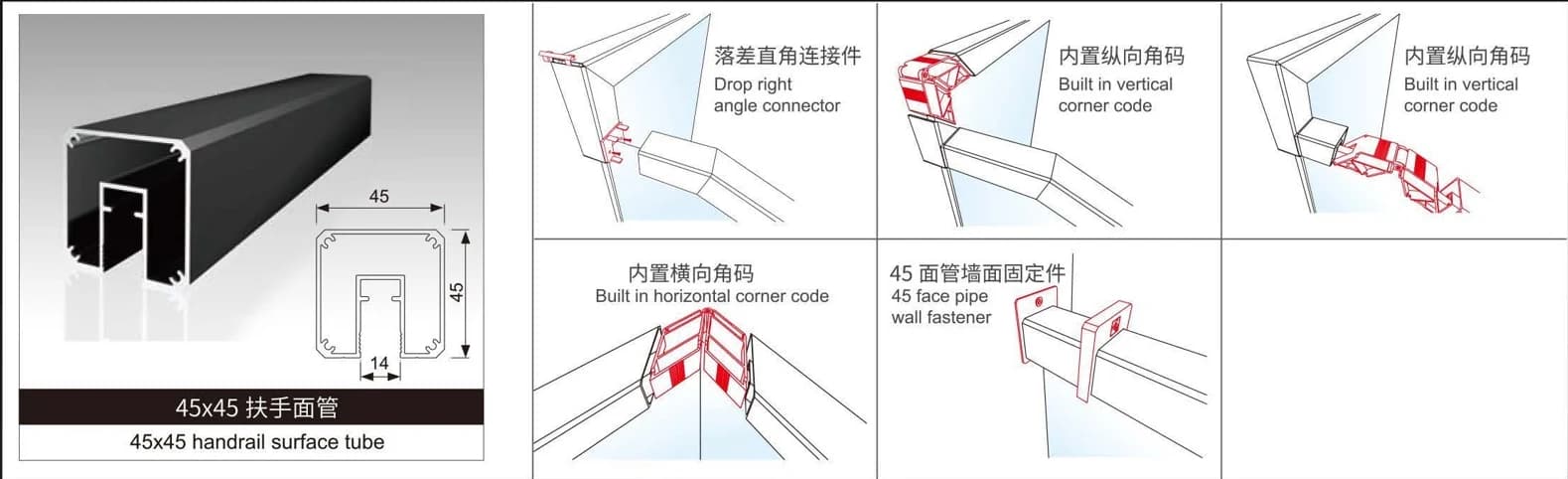

45×45 top rail slot options: 14 / 20 mm; the 20 mm slot is illustrated for 8+8 glass

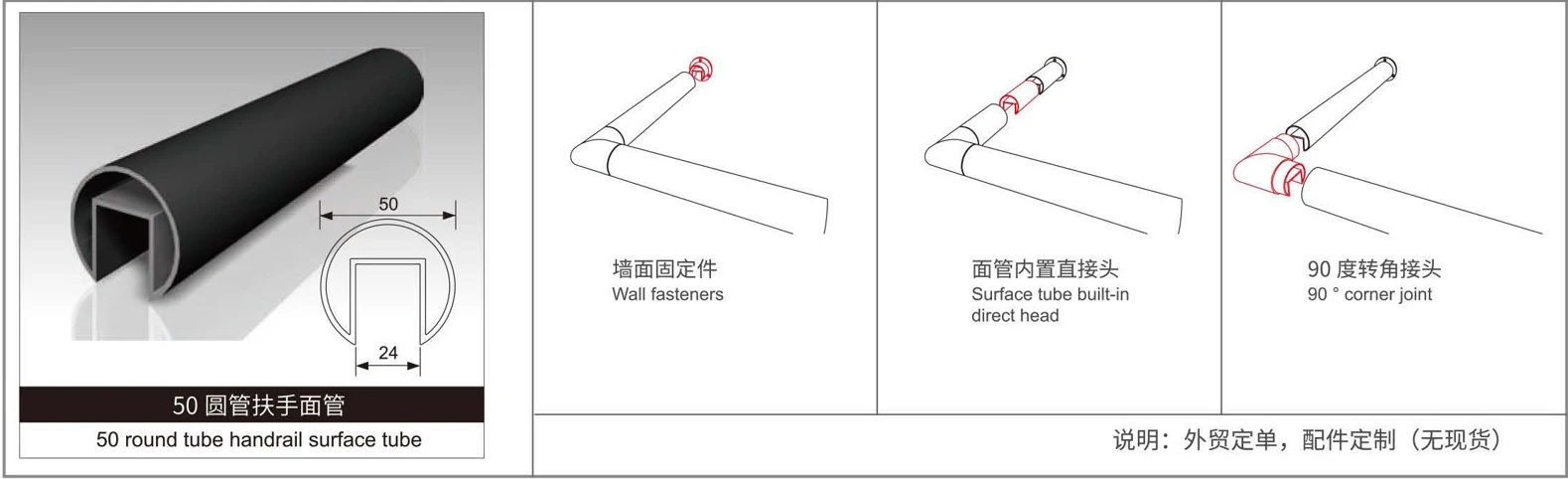

Round top rail diameter / slot: 50 / 24 mm

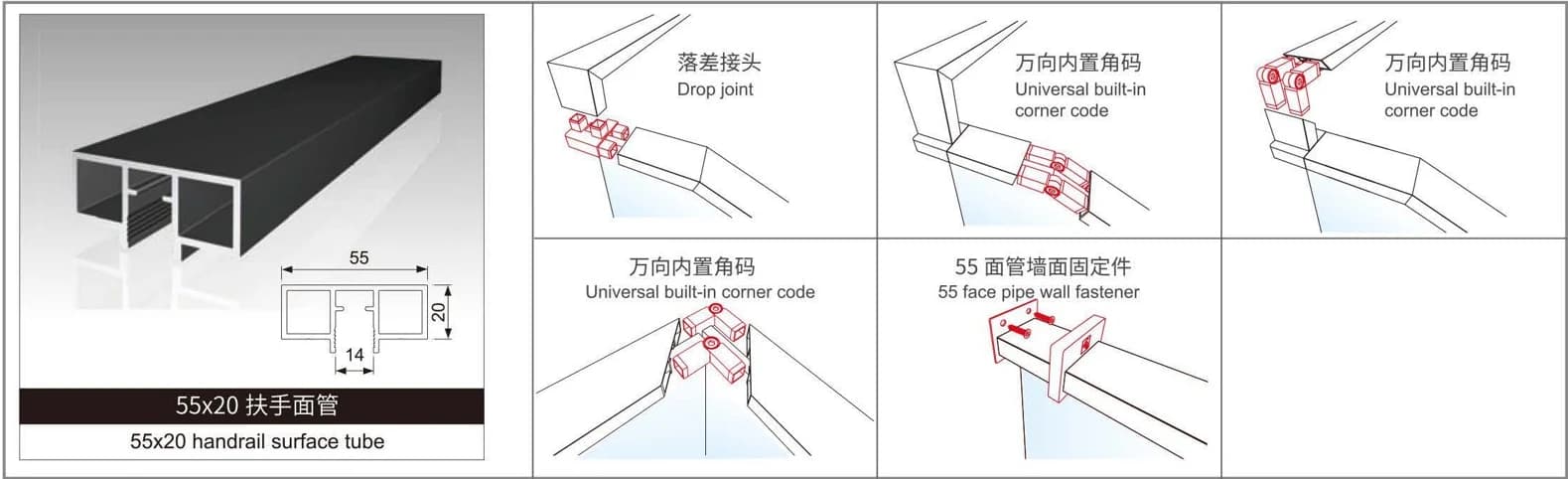

55×20 top rail / slot: 55 × 20 / 14 mm

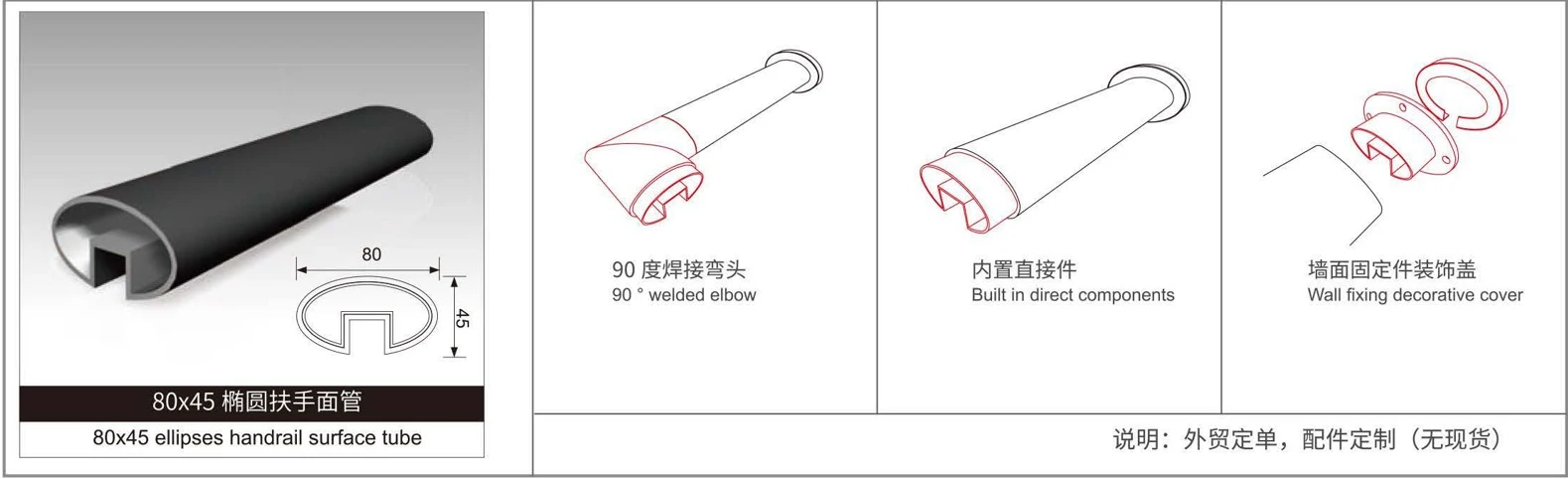

Oval top rail: 80 × 45 mm

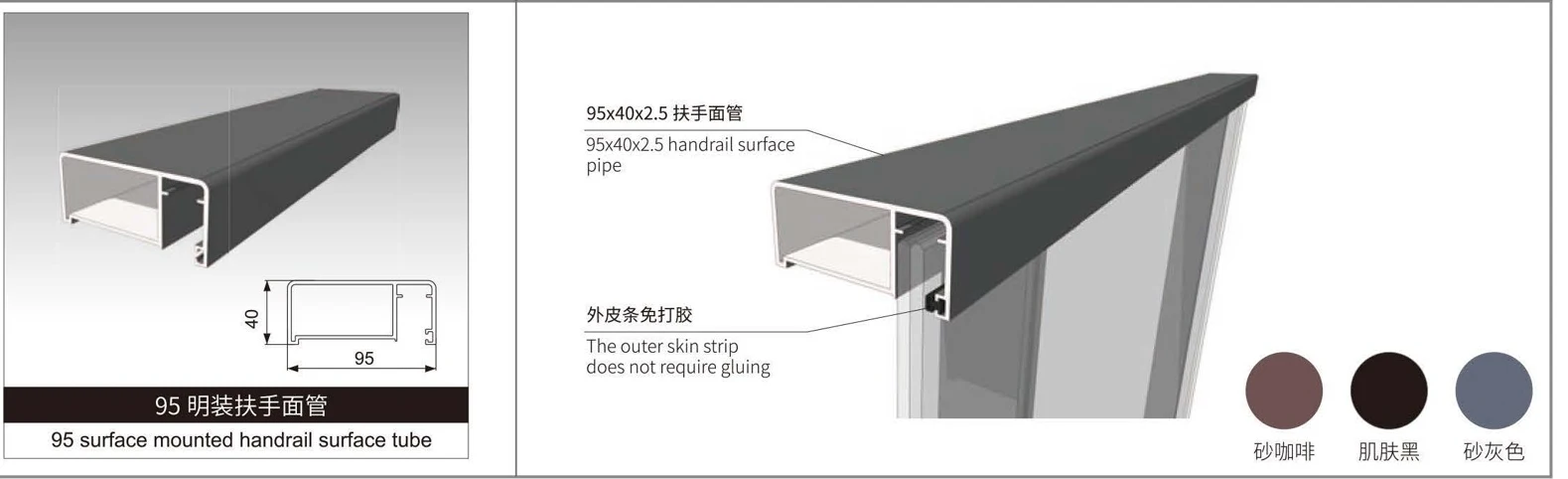

95 surface-mounted top rail (width × height × wall): 95 × 40 × 2.5 mm

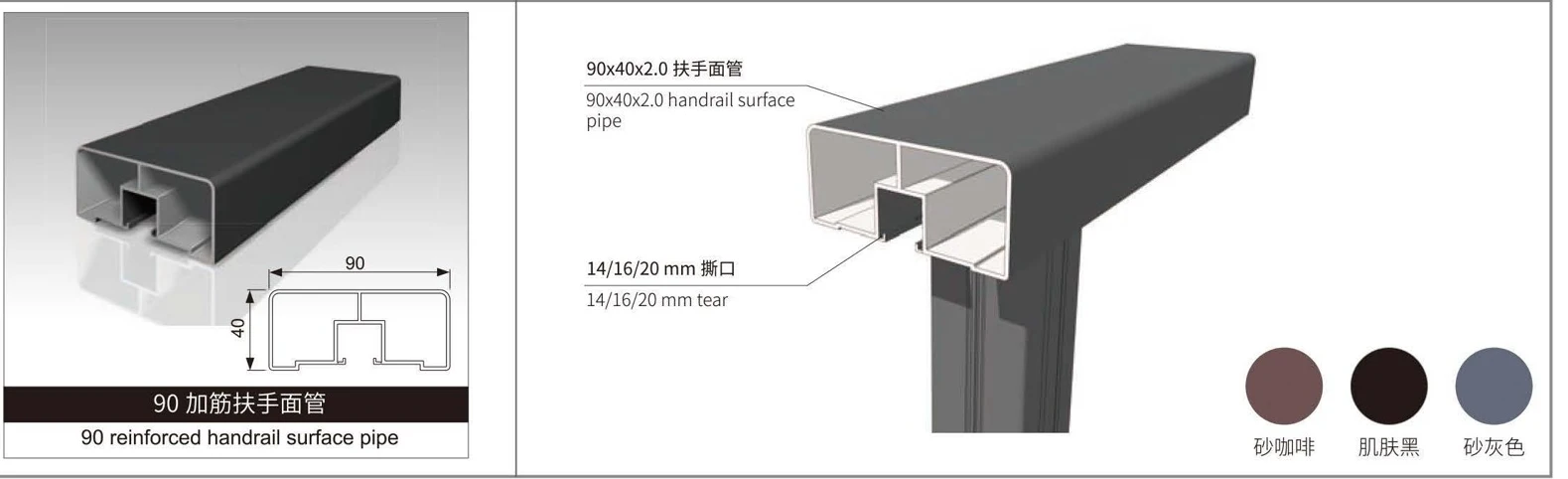

90 reinforced top rail: 90×40×2.0 mm; slot options 14 / 16 / 20 mm

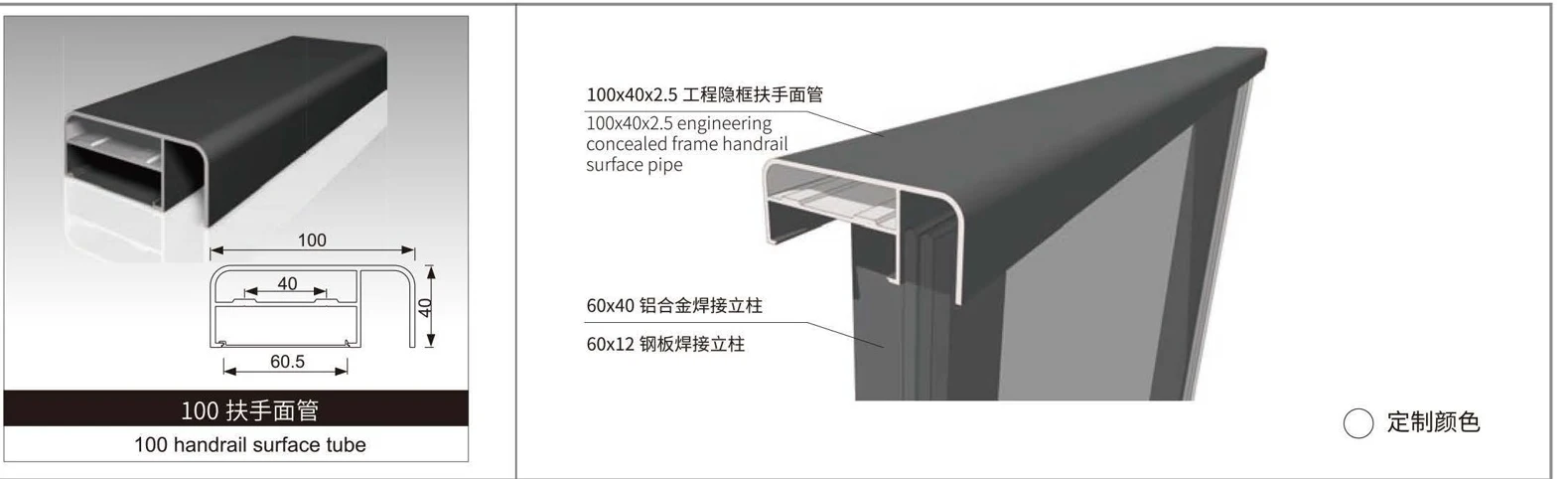

100 project top rail (width × height × wall): 100 × 40 × 2.5 mm

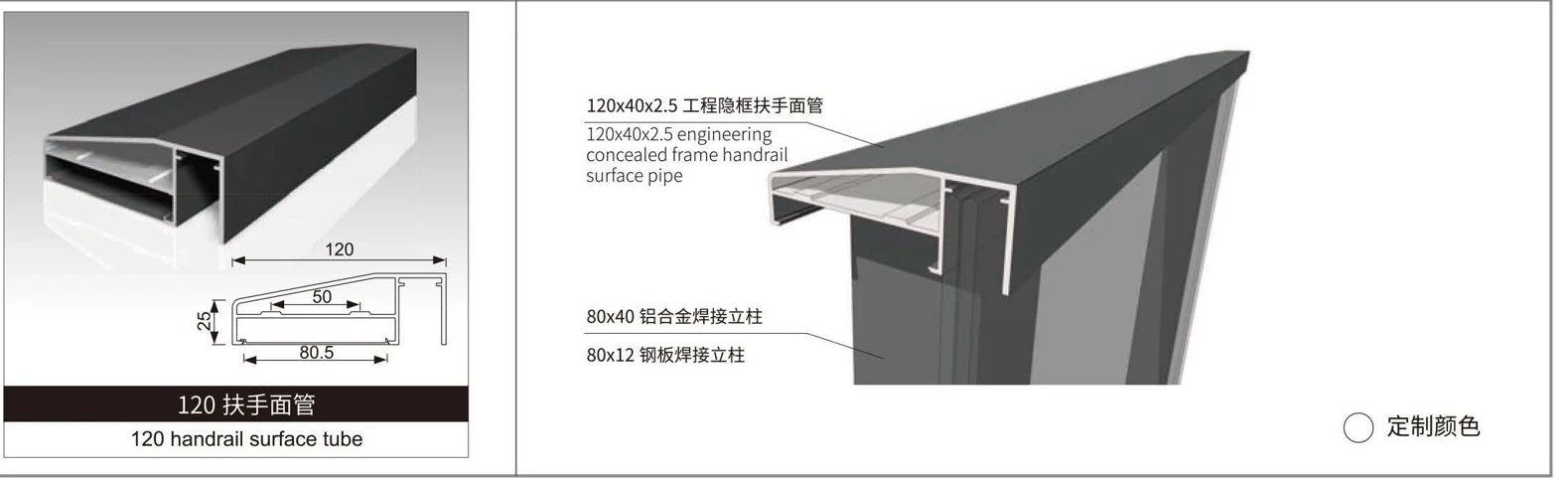

120 project top rail: 120 mm wide, 2.5 mm wall; high side marked 40 mm and low side 25 mm
Illustrated components: Select straight connectors, horizontal / vertical corners, adjustable connectors and wall brackets to suit the top rail
Finish reference: 95 / 90 rails: Sand Coffee, Skin Black, Sand Grey; 100 / 120: custom colors
Made-to-order fittings: Fittings for the 50 round and 80×45 oval rails are made to order
Verification note: These are the configurations illustrated in the corresponding catalog. Slot widths are not total glass thicknesses. Confirm finished height, spans, glass interlayers and installation components for the project.

Specification source: Glass Railing Profiles & Accessories catalog, pages 3, 4, 5. Finish names are descriptive; confirm against an approved sample.

Share dimensions, quantities or drawings for configuration advice and a quotation.

Images and performance values are reproduced from the catalog. Please confirm configuration, test conditions and suitability.
