Glass Railing Profiles & Accessories
Base Shoes for Frameless Glass Railings
Design, construction and specifications
Designs & details

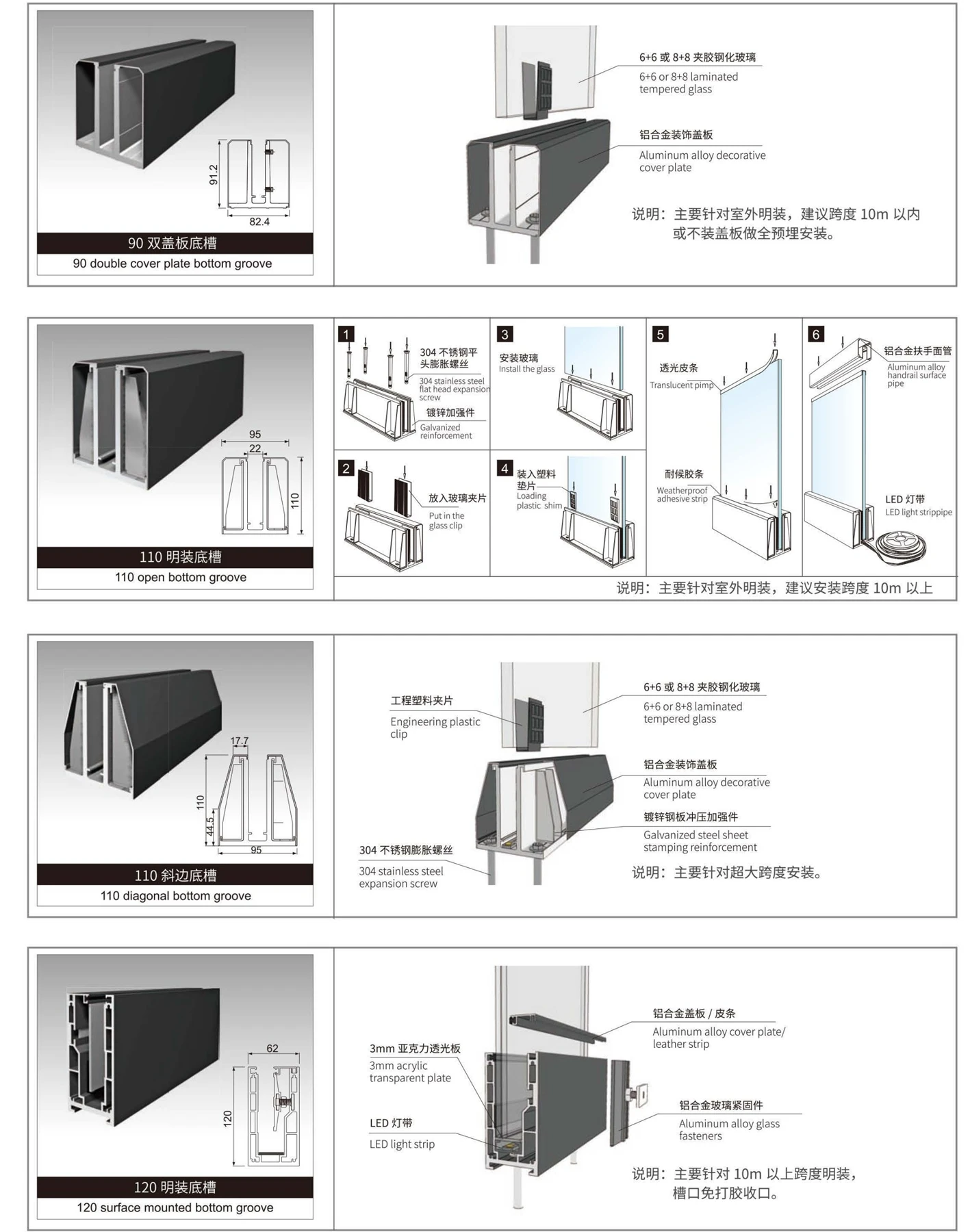

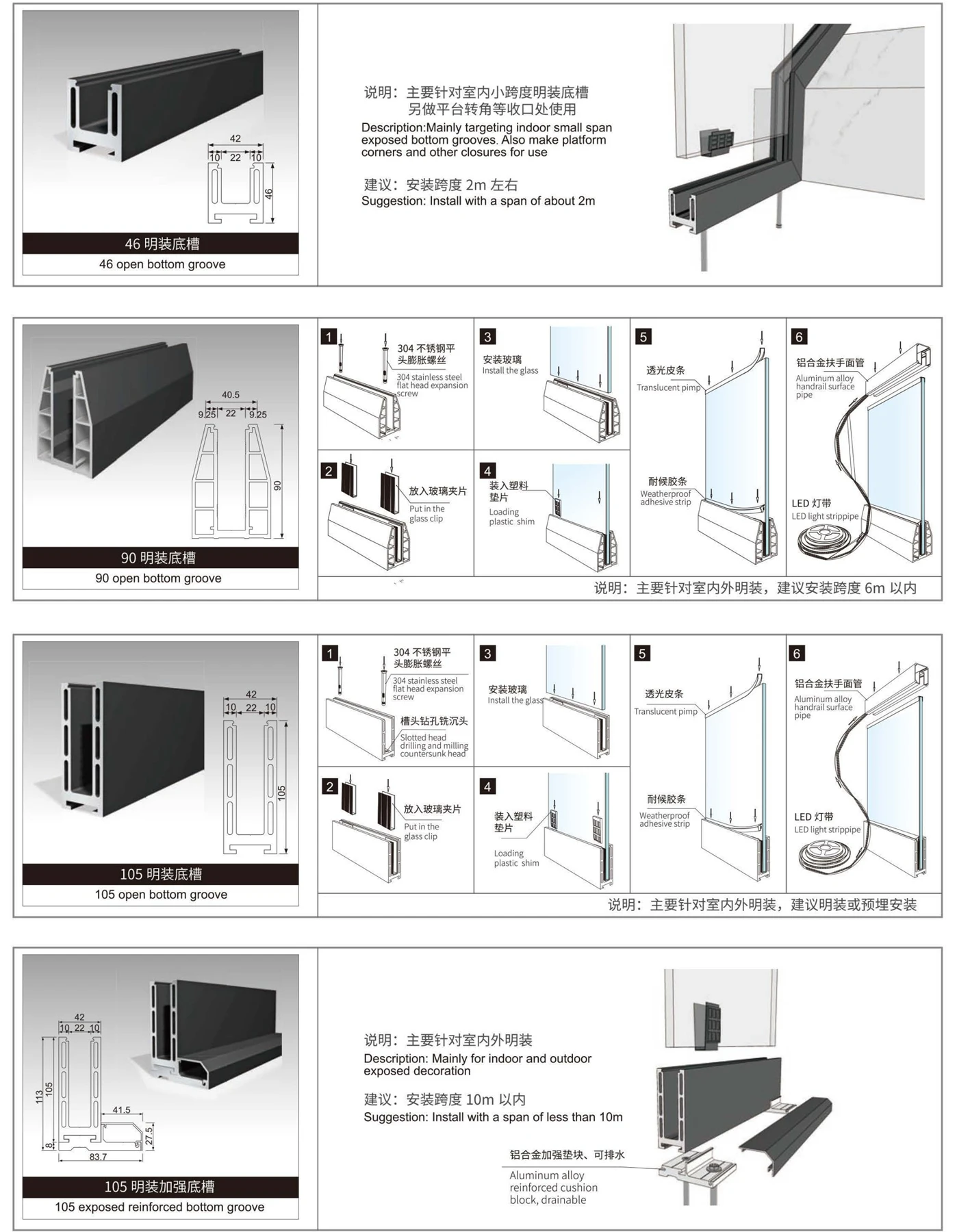

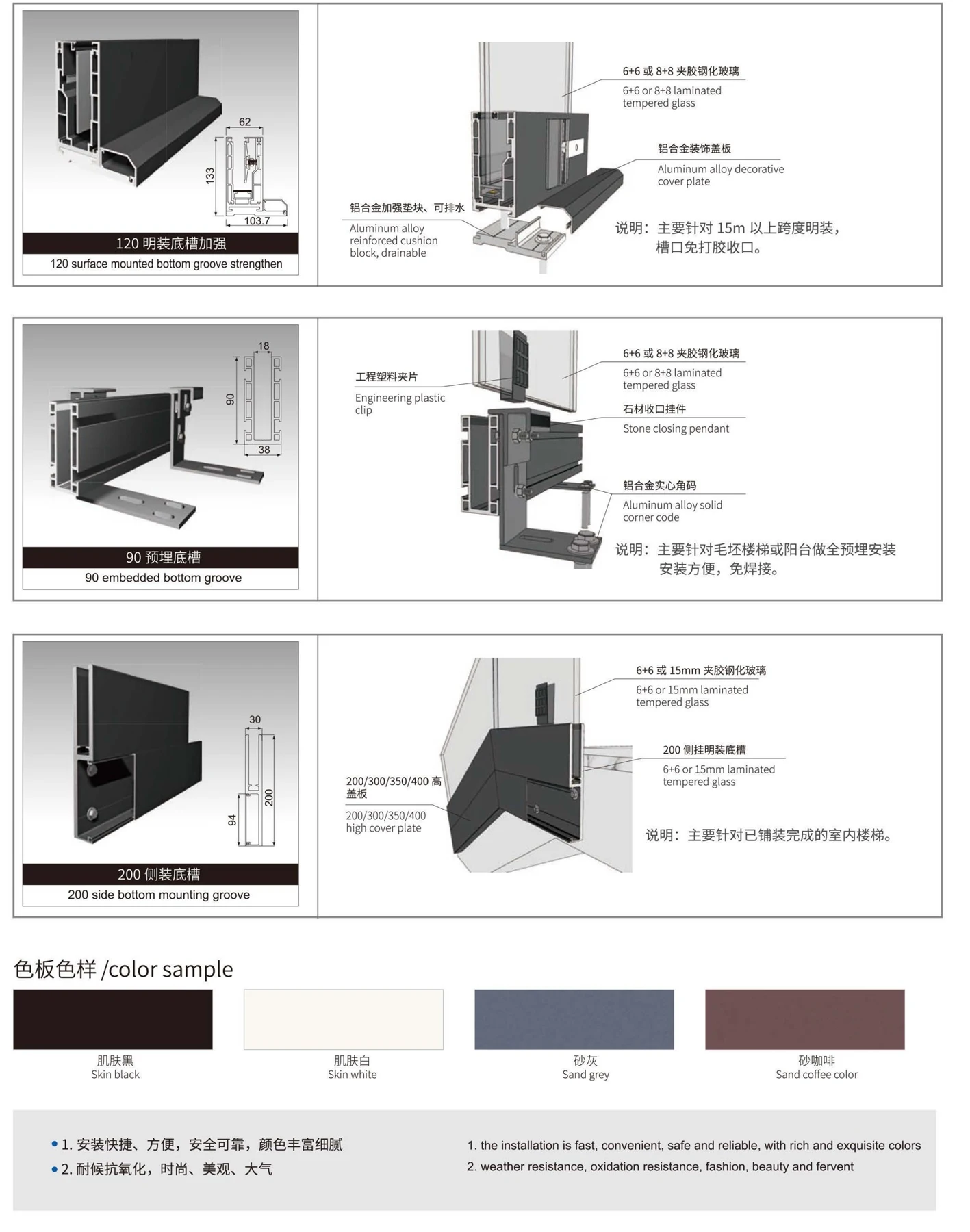

4 visual references
Product specifications
- 46 surface shoe (height × width / slot)
- 46 × 42 / 22 mm
- 90 surface shoe (height × width / slot)
- 90 × 40.5 / 22 mm
- 105 surface shoe (height × width / slot)
- 105 × 42 / 22 mm
- 105 reinforced shoe overall height × width
- 113 × 83.7 mm
- 90 double-cover shoe (height × width)
- 91.2 × 82.4 mm
- 110 surface shoe (height × width / slot)
- 110 × 95 / 22 mm
- 110 bevelled shoe (height × width / slot)
- 110 × 95 / 17.7 mm
- 120 surface shoe (height × width)
- 120 × 62 mm
- 120 reinforced shoe overall height × width
- 133 × 103.7 mm
- 90 recessed shoe (height × width / slot)
- 90 × 38 / 18 mm
- 200 side-mounted shoe
- Body: 200 mm high, 30 mm wide; cover heights: 200 / 300 / 350 / 400 mm
- Illustrated glass options
- 6+6 / 8+8 mm laminated tempered glass; confirm interlayer thickness separately
- Verification note
- The 200 side-mounted variant separately lists 6+6 or 15 mm glass; confirm the 15 mm build-up. Confirm spans and anchorage for each project. These are the configurations illustrated in the corresponding catalog. Slot widths are not total glass thicknesses. Confirm finished height, spans, glass interlayers and installation components for the project.
- Illustrated components
- Plastic shims, 304 stainless steel expansion screws, end caps and weather seals; selected models accept LED strips
- Finish samples
- Skin Black / Skin White / Sand Grey / Sand Coffee
Specification source: Glass Railing Profiles & Accessories catalog, pages 6, 7, 8, 9. Finish names are descriptive; confirm against an approved sample.
