No top rail / 45 top rail with articulated connectors / 90 top rail with 40 base channel
50 posts
50×50×3.0 mm; also 50×50×2.0 mm with 14 / 18 mm slots

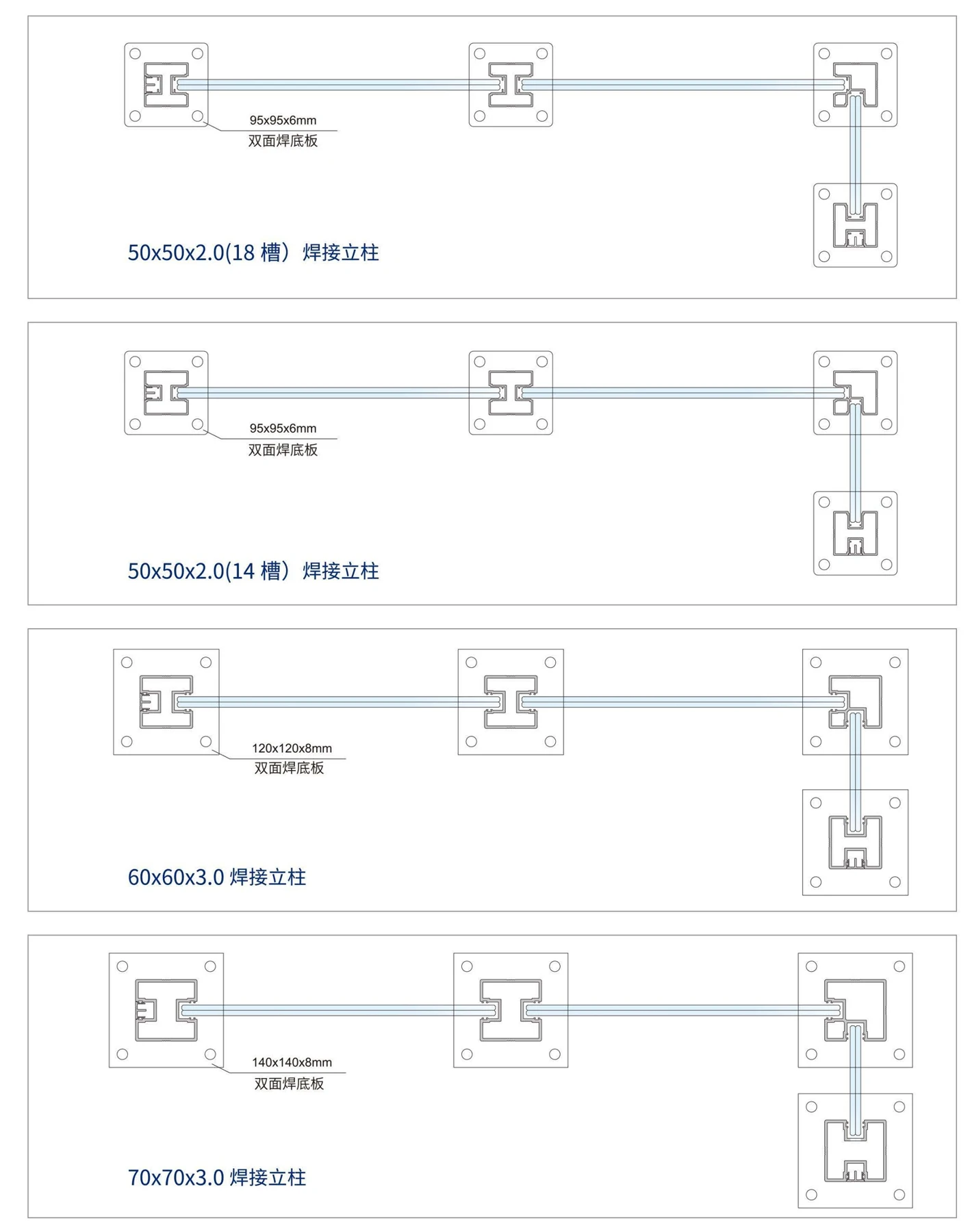

50 post welded base plate
95 × 95 × 6 mm
Other posts / base plates
60×60×3.0 / 120×120×8 mm; 70×70×3.0 / 140×140×8 mm
Illustrated glass
6+6 mm laminated tempered glass; confirm interlayer thickness separately
Top rail and base channel sizes

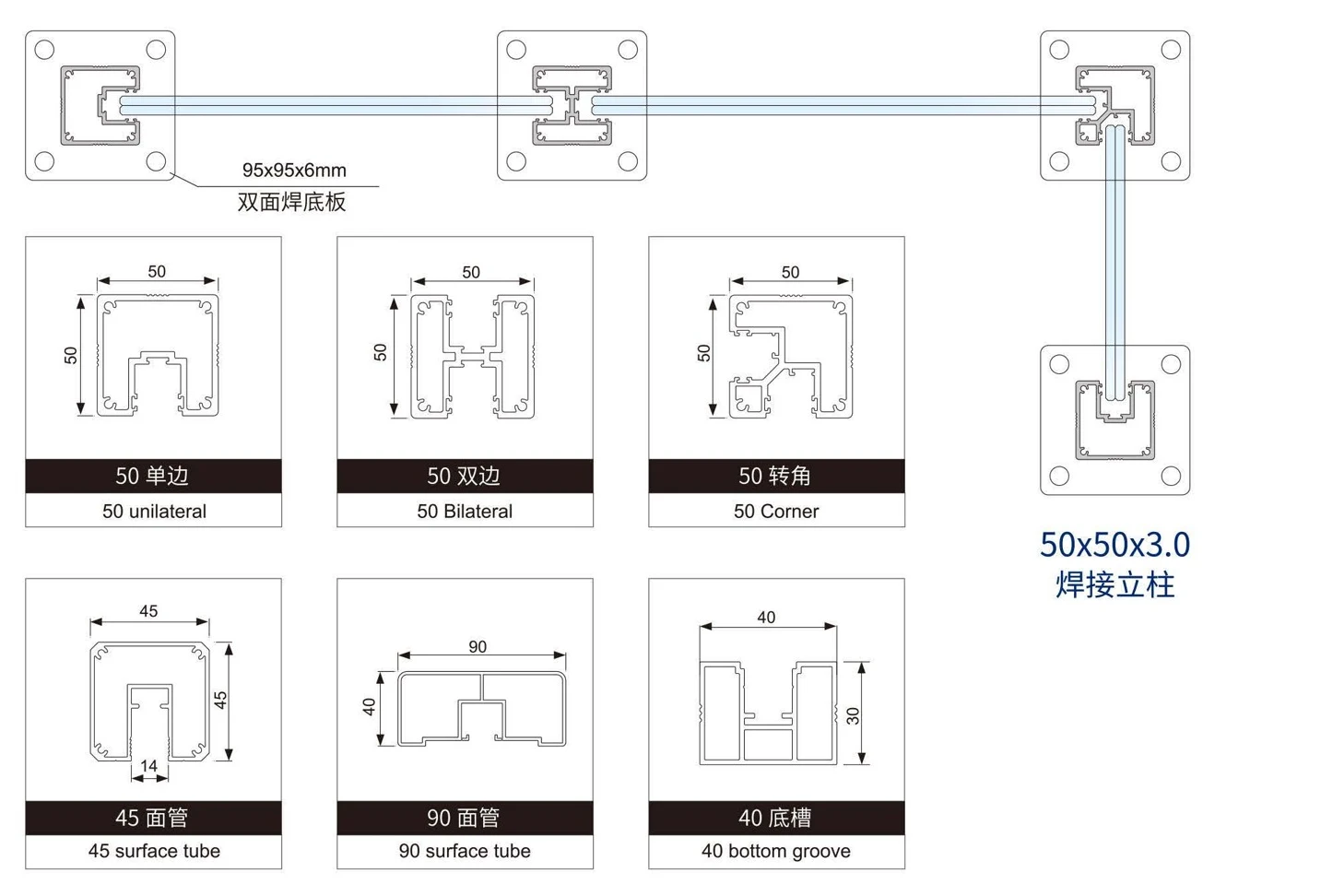

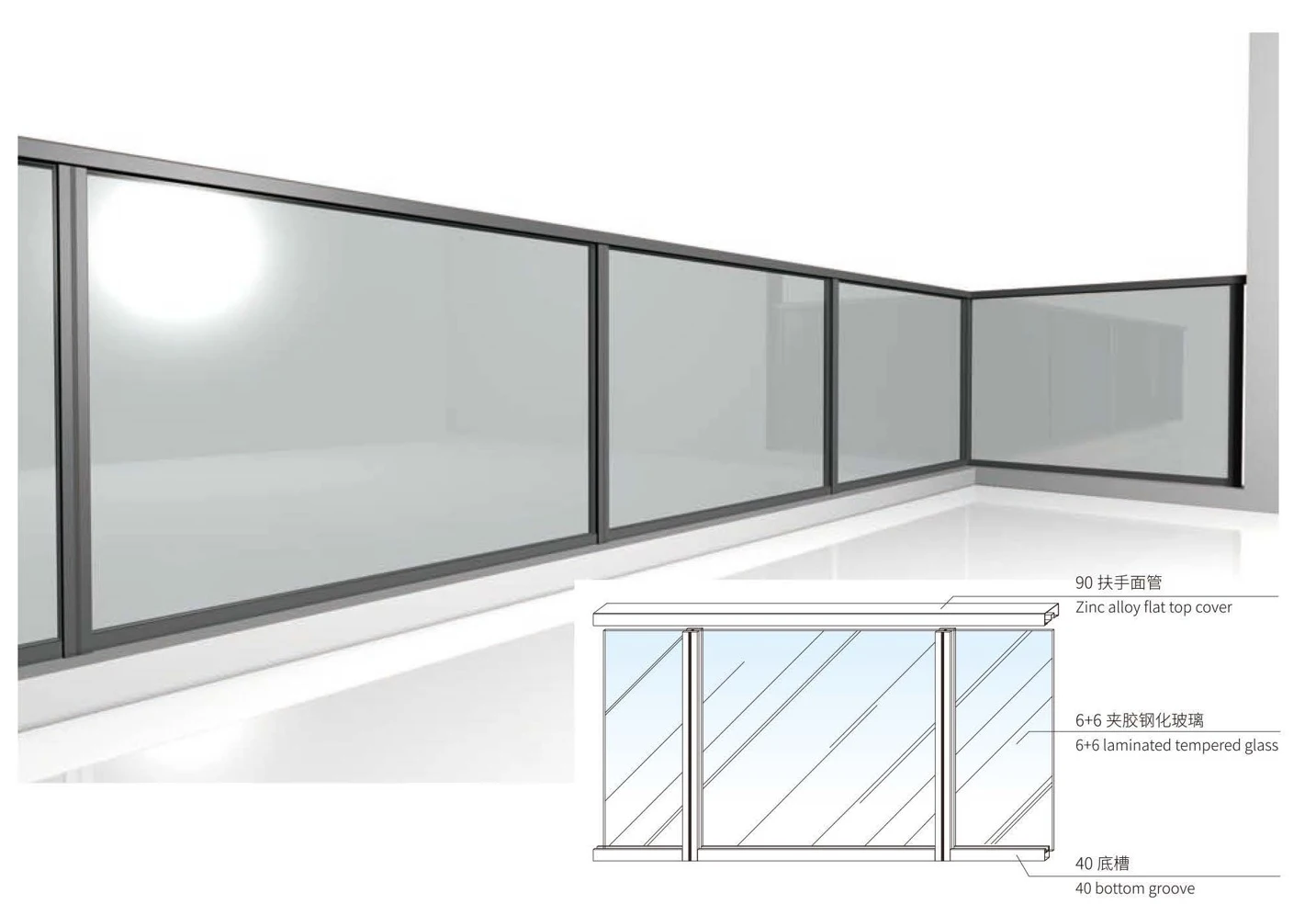

45×45 (14 slot) / 90×40 top rails; 40×30 mm base channel
Illustrated components

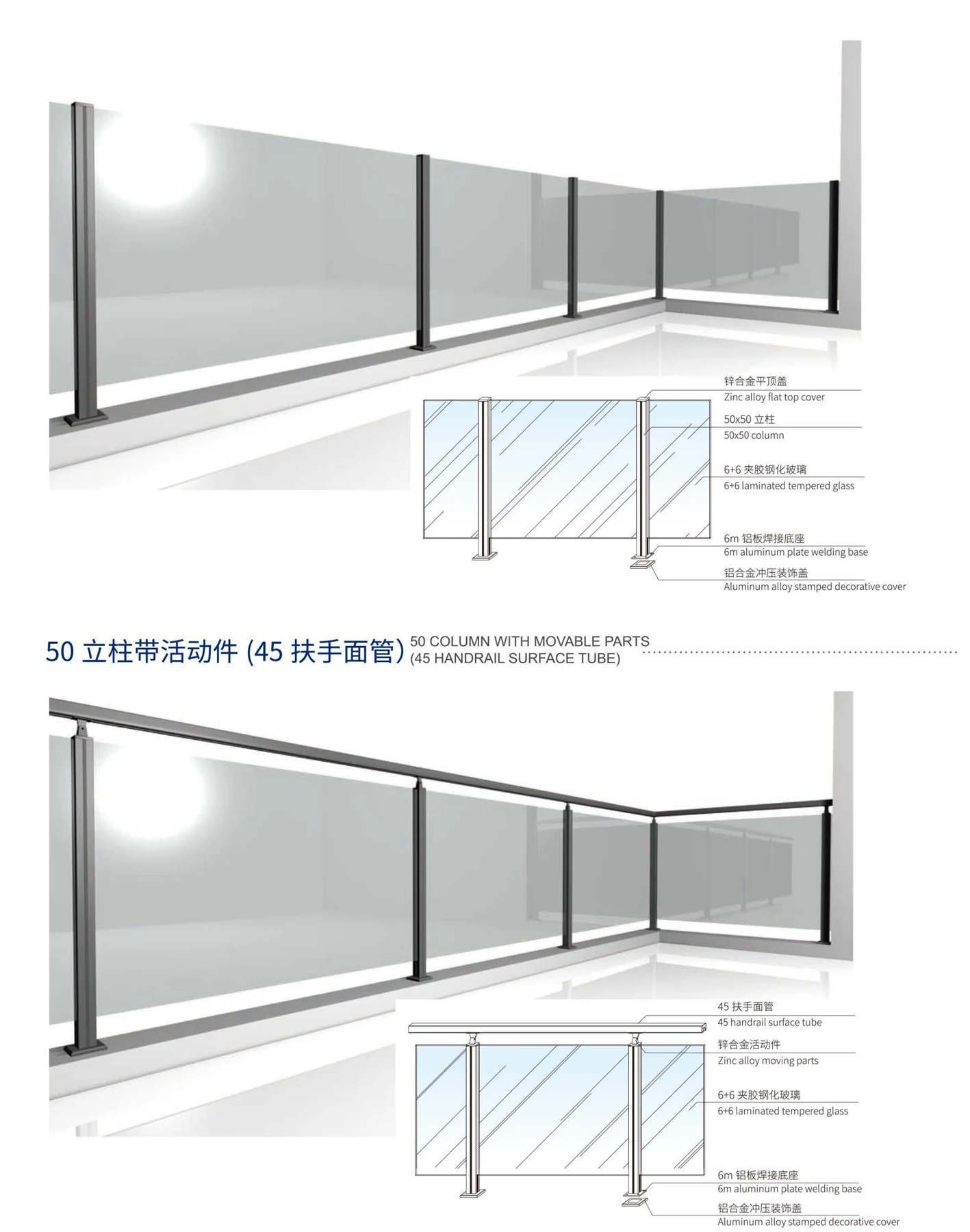

Zinc alloy caps or articulated fittings, aluminum covers; end / inline / corner posts
Verification note
These are the configurations illustrated in the corresponding catalog. Slot widths are not total glass thicknesses. Confirm finished height, spans, glass interlayers and installation components for the project.
Specification source: Glass Railing Profiles & Accessories catalog, pages 17, 18, 19, 20. Finish names are descriptive; confirm against an approved sample.
Interested in this design?
Share dimensions, quantities or drawings for configuration advice and a quotation.
