1.8 mm wall / 14 mm slot; 2.0 mm wall / 20 mm slot
Top rail provision

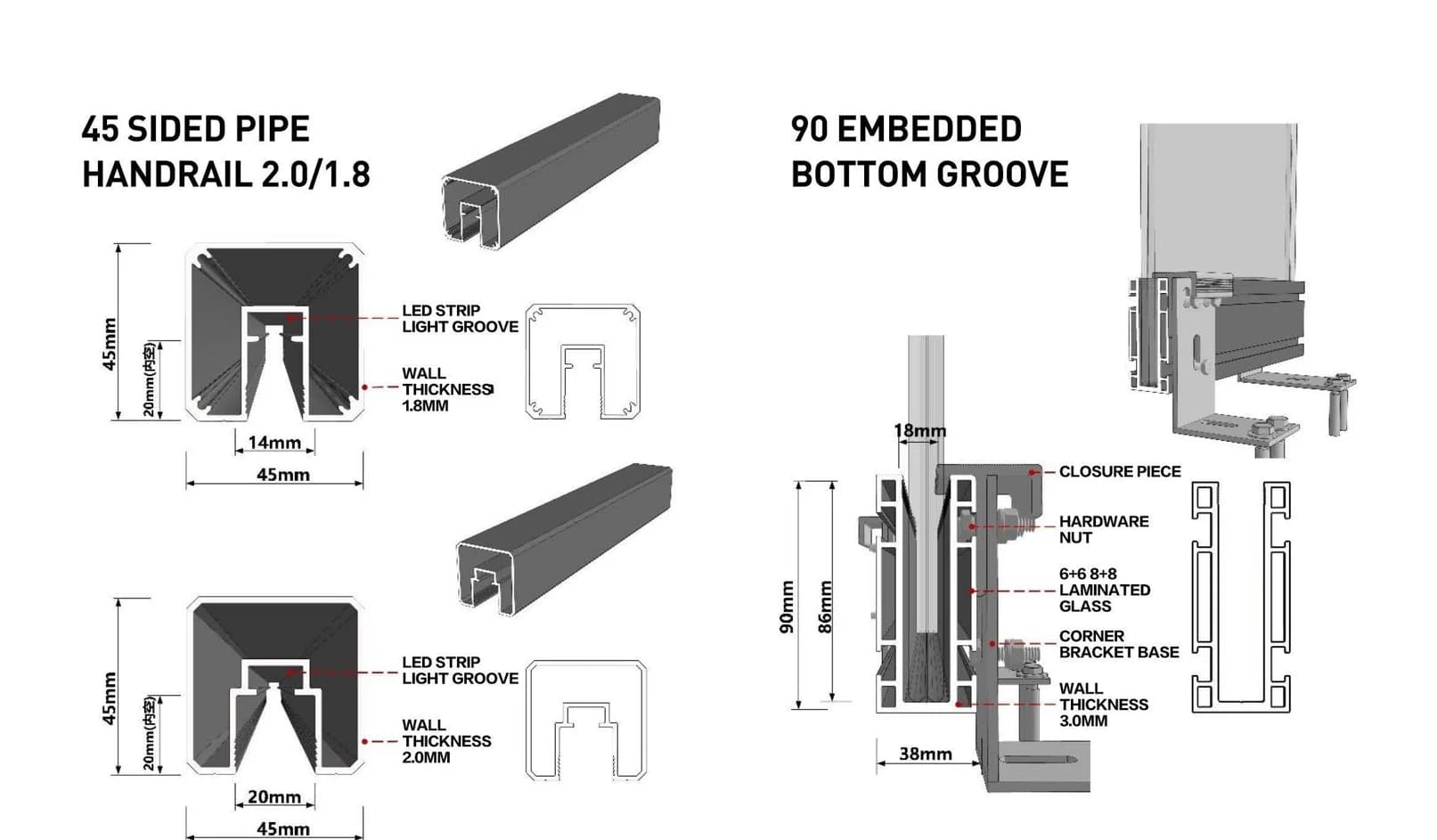

Illustrated LED groove; confirm whether the LED strip is included
Recessed base shoe height × width
90 × 38 mm
Base shoe wall thickness
3.0 mm
Base shoe slot / internal depth
18 / 86 mm
Illustrated glass options
6+6 / 8+8 mm laminated glass; confirm interlayer thickness separately
Illustrated components
Closure profiles, nuts and angle-bracket bases
Verification note
These are the configurations illustrated in the corresponding catalog. Slot widths are not total glass thicknesses. Confirm finished height, spans, glass interlayers and installation components for the project.
Specification source: Aluminum Glass Railings catalog, pages 14. Finish names are descriptive; confirm against an approved sample.
