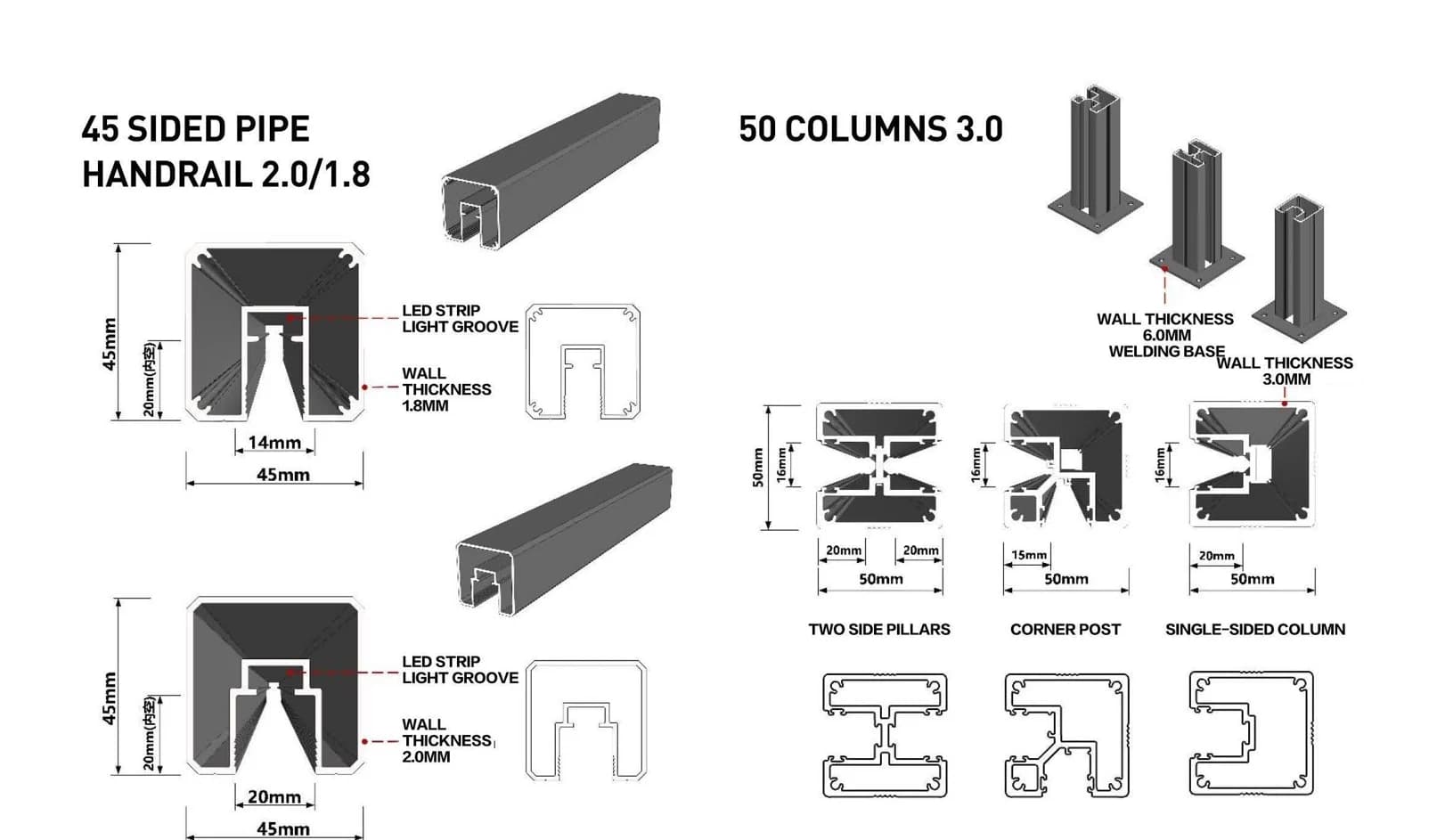

1.8 mm wall / 14 mm slot; 2.0 mm wall / 20 mm slot
Top rail provision
Illustrated LED groove; confirm whether the LED strip is included
Post section
50 × 50 mm
Post wall thickness
3.0 mm
Welded base plate thickness
6 mm
Illustrated post heights
1000 / 1200 mm
Post variants
Inline / corner / end posts
Illustrated glazing slots
Inline and end: 20 mm; corner: 15 mm; slot depth: 16 mm
Verification note
These are the configurations illustrated in the corresponding catalog. Slot widths are not total glass thicknesses. Confirm finished height, spans, glass interlayers and installation components for the project.
Specification source: Aluminum Glass Railings catalog, pages 13. Finish names are descriptive; confirm against an approved sample.
