1.8 mm wall / 14 mm slot; 2.0 mm wall / 20 mm slot
Top rail provision
Illustrated LED groove; confirm whether the LED strip is included
Base shoe height × width
105 × 42 mm
Base shoe wall thickness
10 mm
Base shoe slot / internal depth
22 / 90 mm

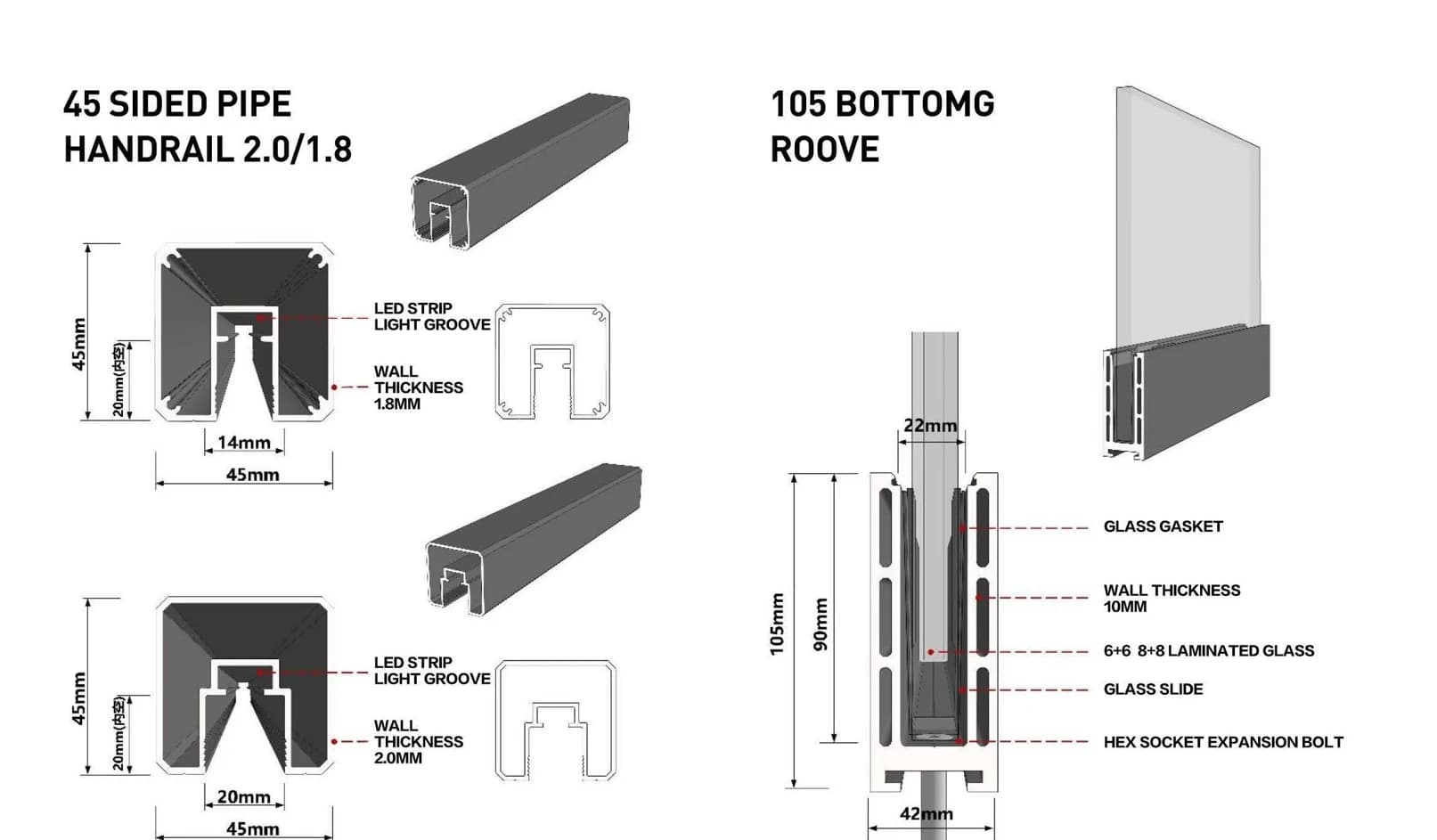

Illustrated glass options
6+6 / 8+8 mm laminated glass; confirm interlayer thickness separately
Illustrated components
Glass gaskets, setting blocks and hex-socket expansion bolts
Verification note
These are the configurations illustrated in the corresponding catalog. Slot widths are not total glass thicknesses. Confirm finished height, spans, glass interlayers and installation components for the project.
Specification source: Aluminum Glass Railings catalog, pages 2. Finish names are descriptive; confirm against an approved sample.
