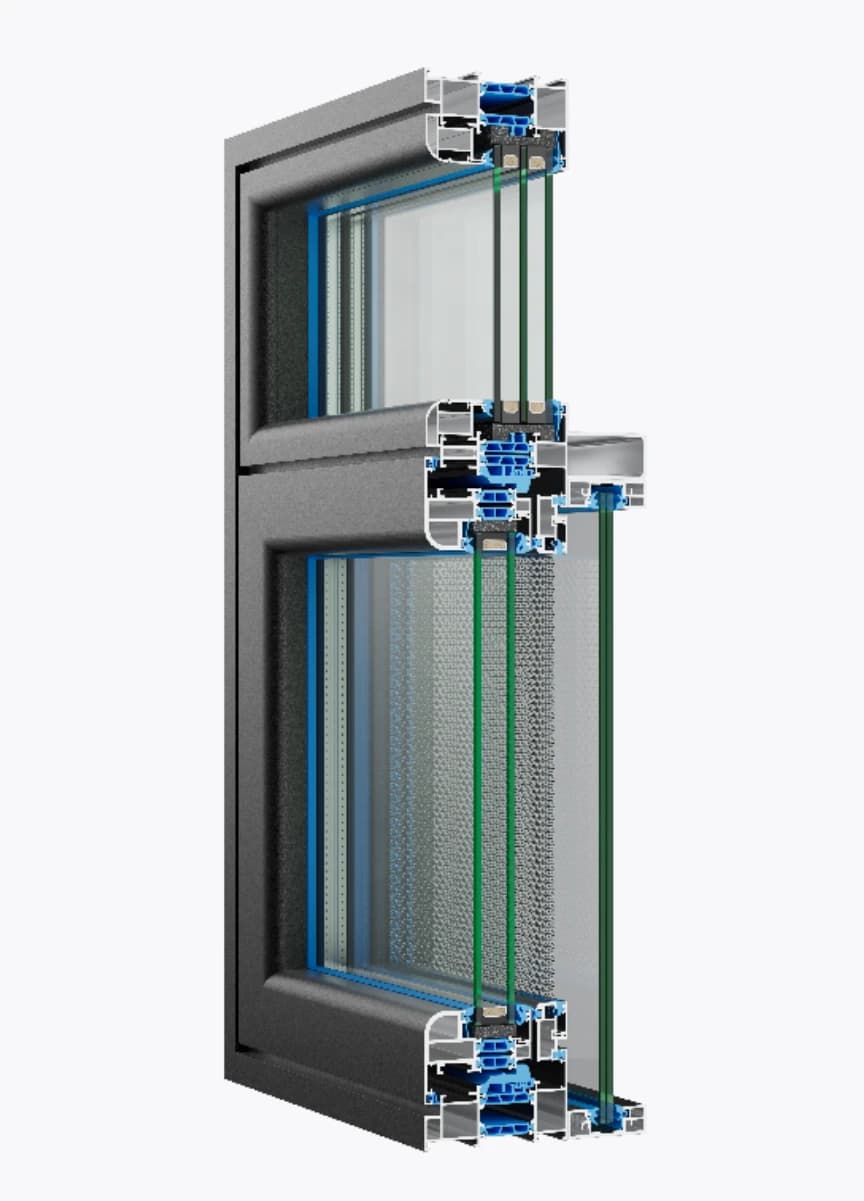

93 Tilt-and-Turn Thermal-Break System Window
Design, construction and specifications
Designs & details
2 visual references
- Sound insulation
- 40 dB
- Airtightness
- q1 ≤ 0.5
- Thermal insulation
- K 1.5–2.0
- Watertightness
- P ≥ 700
- Wind pressure resistance
- P3 ≥ 9.0
Performance values are from the original catalog and have not been retested for this specification. Confirm performance for the selected glazing, dimensions and options.
Product specifications
Core specifications
- Main profile
- Primary aluminum T6063-T66
- Glazing configuration
- 5+20A+5 mm
- Profile wall thickness
- 1.8 + 3.0 mm
- Hardware
- SIEGENIA 180° inward-opening tilt-and-turn hardware
- Optional micro-ventilation hardware
- JIEDO hinges and OTA rosette-free handle; insect screen available
- Micro-ventilation height
- Standard arrangement up to 2.4 m; taller units require confirmation
Finishes & appearance
- Glazing bead / trim options
- Integral curved trim
- Interior finish options
- Skyline Grey, Carbon Black
- Exterior finish options
- Skyline Grey, Carbon Black
Construction & detailing
- Sealing system
- Three sealing layers as standard
- Reinforced mullion
- Not standard; required for window heights over 2300 mm
Specification source: September 2026 specification sheet, page 2; unchanged construction and images: EOUXIN Chinese catalog, page 25 and adjacent scene page, pages 25, 26. Finish names are descriptive; confirm against an approved sample.
