Aluminum Windows & Doors
65 Narrow-Frame Sliding Door
Design, construction and specifications
Designs & details
2 visual references
Product specifications
Core specifications
- Main profile
- Primary aluminum T6063-T66
- Profile wall thickness
- 3.0 mm
- Glazing configuration
- 5+12A+5 mm
- Hardware
- BOGO hardware
Finishes & appearance
- Finish options
- Starry Grey, Soft-Touch Black

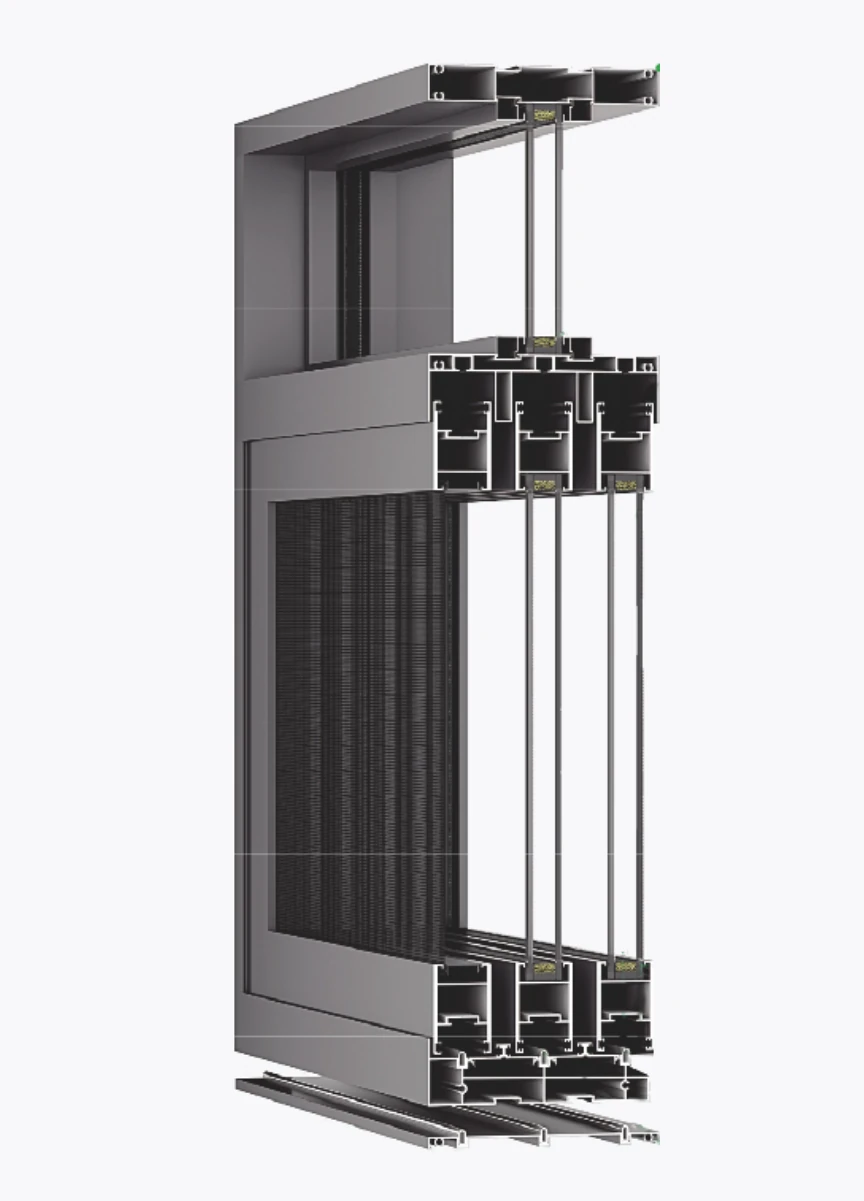

Construction & detailing
- Sash stile (mm)
- 65
- Frame width (mm)
- 2-track 105; 3-track 156
- Architrave width (mm)
- 55
- Architrave wall overlap (mm)
- 25
Specification source: EOUXIN Chinese catalog, pages 47, 48. Finish names are descriptive; confirm against an approved sample.
Interested in this design?
Share dimensions, quantities or drawings for configuration advice and a quotation.
Images and performance values are reproduced from the catalog. Please confirm configuration, test conditions and suitability.
