Aluminum Windows & Doors

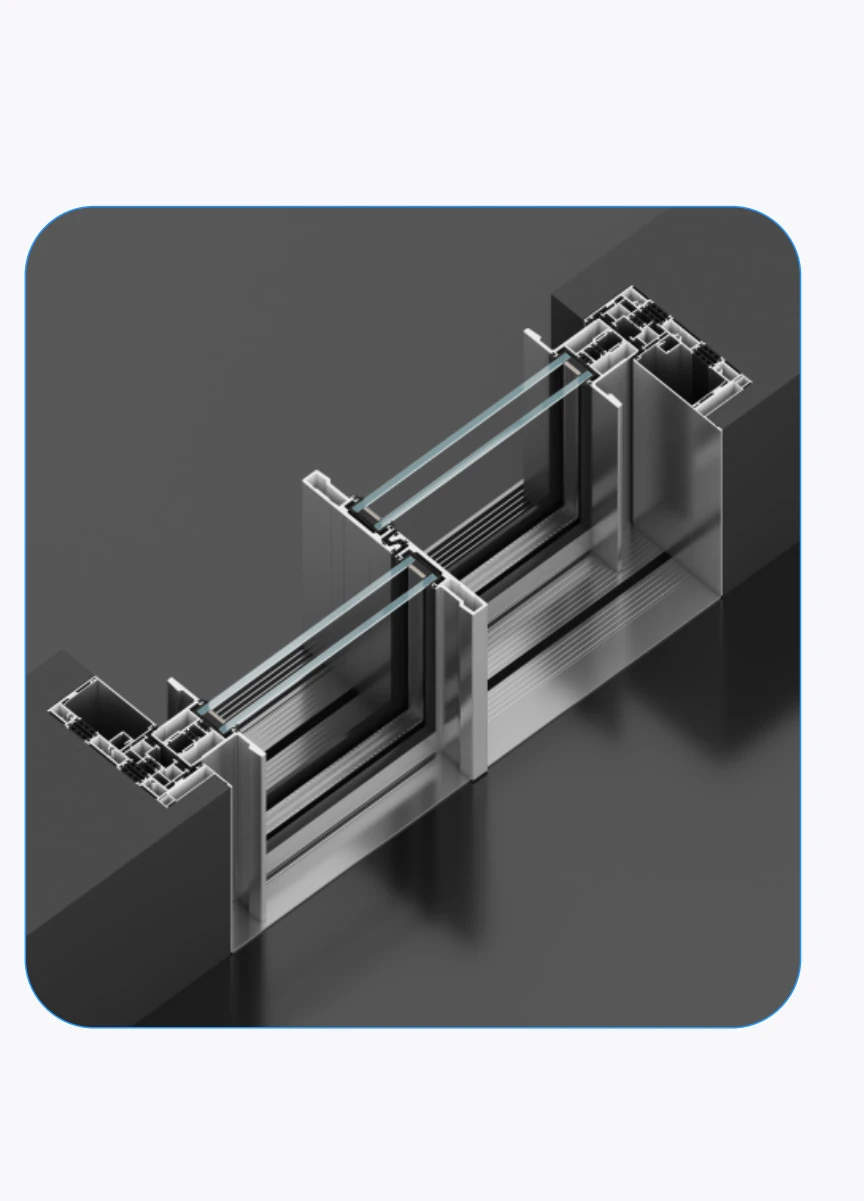

158 Panoramic Sliding Door
Design, construction and specifications
Designs & details
2 visual references
Product specifications
Core specifications
- Main profile
- Primary aluminum T6063-T66
- Profile wall thickness
- 2.0–7.0 mm
- Glazing configuration
- 6+27A+6 mm
- Hardware
- Bespoke hardware system
Finishes & appearance
- Finish options
- Skyline Grey, Carbon Black
Construction & detailing
- Central interlock (mm)
- 20
- Frame width (mm)
- 158
- Recessed bottom track depth (mm)
- 70
- Bottom track including drainage channel (mm)
- 205
Specification source: EOUXIN Chinese catalog, pages 43, 44. Finish names are descriptive; confirm against an approved sample.
Interested in this design?
Share dimensions, quantities or drawings for configuration advice and a quotation.
Images and performance values are reproduced from the catalog. Please confirm configuration, test conditions and suitability.
