Aluminum Windows & Doors
141 Thermal-Break Lift-and-Slide Door
Design, construction and specifications
Designs & details
2 visual references
Product specifications
Core specifications
- Main profile
- Primary aluminum T6063-T66
- Profile wall thickness
- 1.8–2.5 mm
- Glazing configuration
- 5+20A+5 mm
- Hardware
- CMECH lock; optional CMECH lift-and-slide hardware
Finishes & appearance
- Finish options
- Skyline Grey, Carbon Black

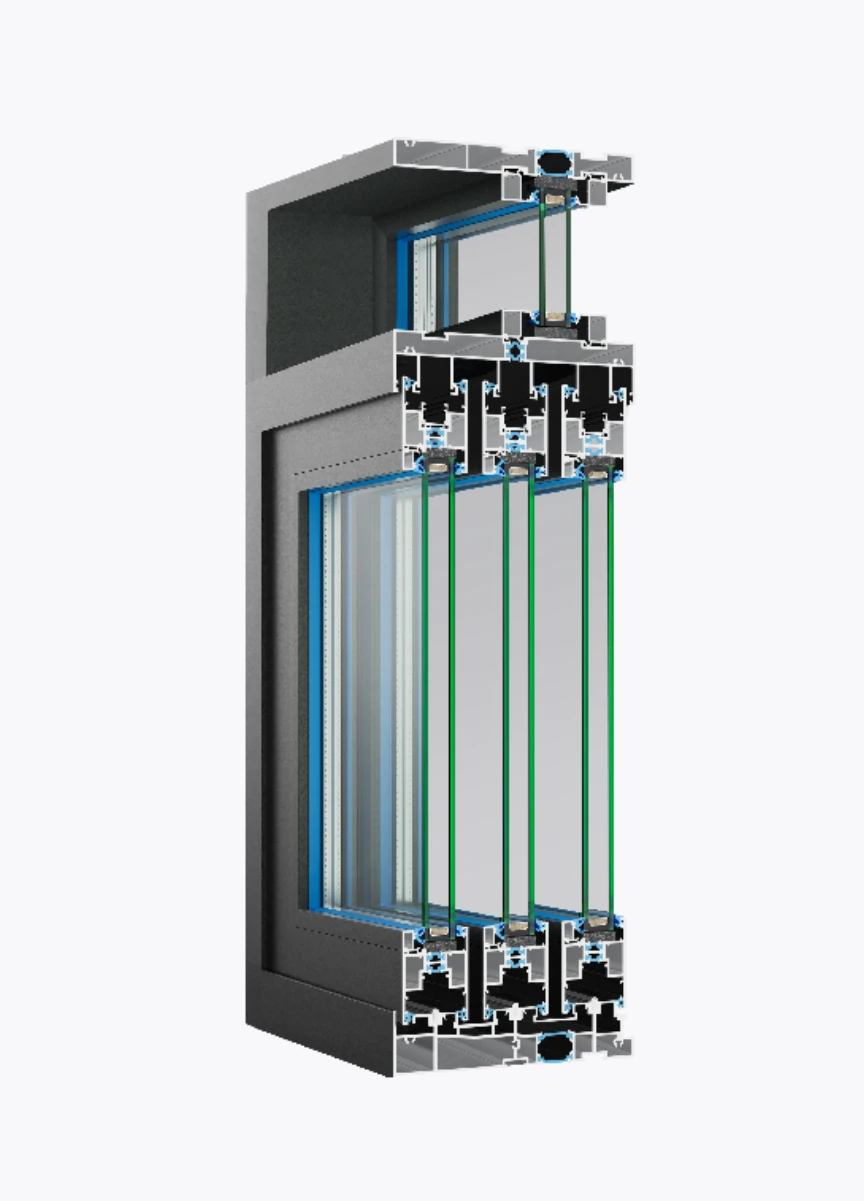

Construction & detailing
- Sash stile (mm)
- 95
- Frame width (mm)
- 2-track 141; 3-track 208
- Architrave width (mm)
- 90
- Architrave wall overlap (mm)
- 49
Specification source: EOUXIN Chinese catalog, pages 41, 42. Finish names are descriptive; confirm against an approved sample.
Interested in this design?
Share dimensions, quantities or drawings for configuration advice and a quotation.
Images and performance values are reproduced from the catalog. Please confirm configuration, test conditions and suitability.
