Aluminum Windows & Doors
139 Panoramic Sliding Thermal-Break System Window
Design, construction and specifications
Designs & details
3 visual references
- Sound insulation
- 38 dB
- Airtightness
- q1 ≤ 0.5
- Thermal insulation
- K 2.0–2.2
- Watertightness
- P ≥ 700
- Wind pressure resistance
- P3 ≥ 9.0
Product specifications
Core specifications
- Main profile
- Primary aluminum T6063-T66
- Profile wall thickness
- 2.0–4.0 mm
- Glazing configuration
- 6+27A+6 mm
- Hardware
- Bespoke hardware system
Finishes & appearance
- Finish options
- Skyline Grey, Carbon Black

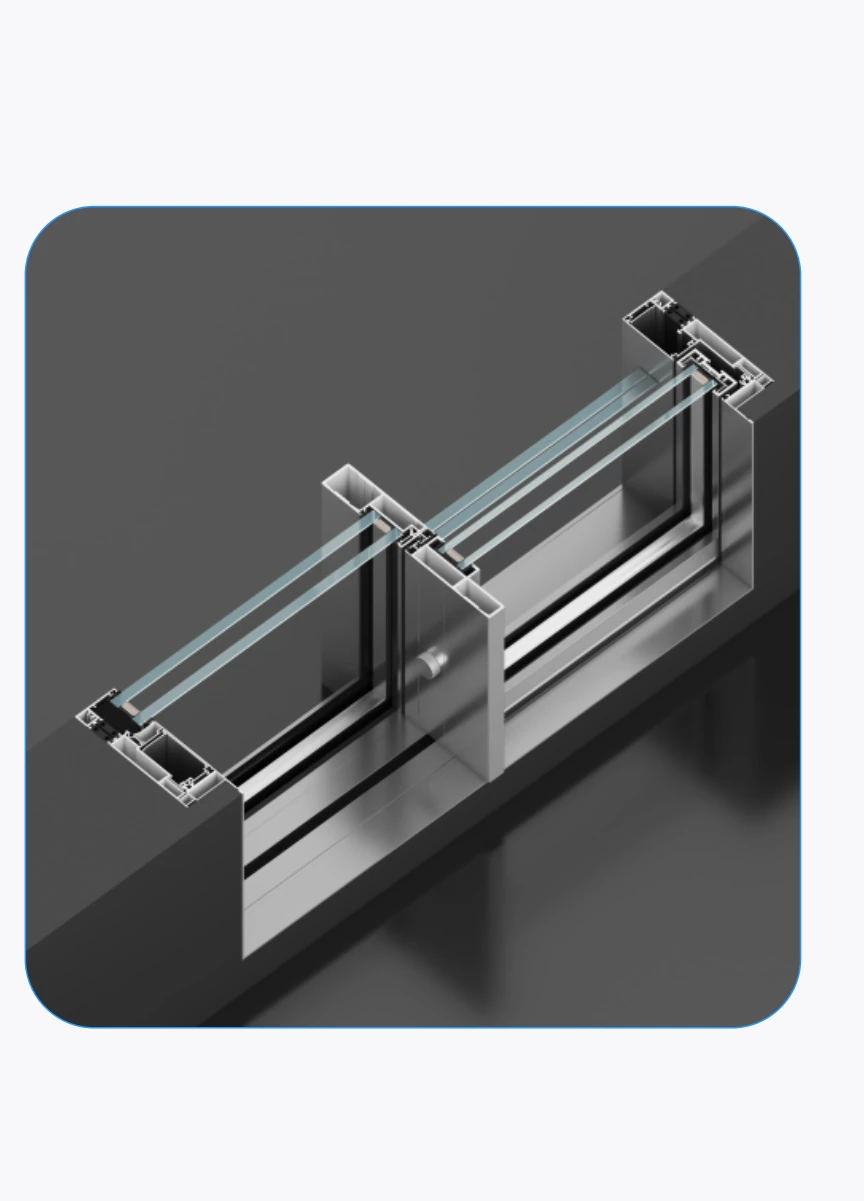

Construction & detailing

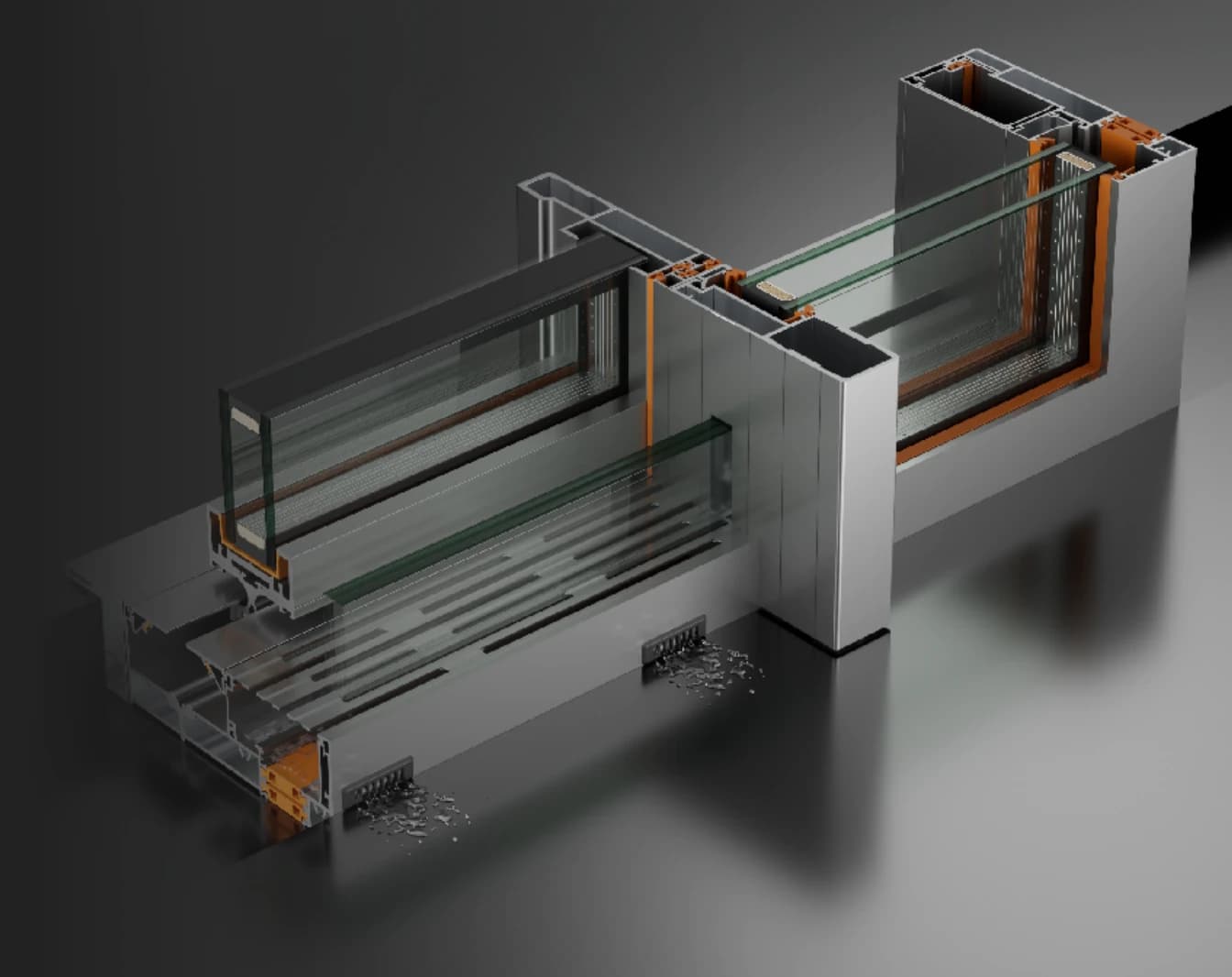

- Drainage
- Flat lower track; multi-stage stepped drainage; external wind-resistant drainage covers
Specification source: EOUXIN Chinese catalog, pages 30, 31, 32. Finish names are descriptive; confirm against an approved sample.
Interested in this design?
Share dimensions, quantities or drawings for configuration advice and a quotation.
Images and performance values are reproduced from the catalog. Please confirm configuration, test conditions and suitability.
