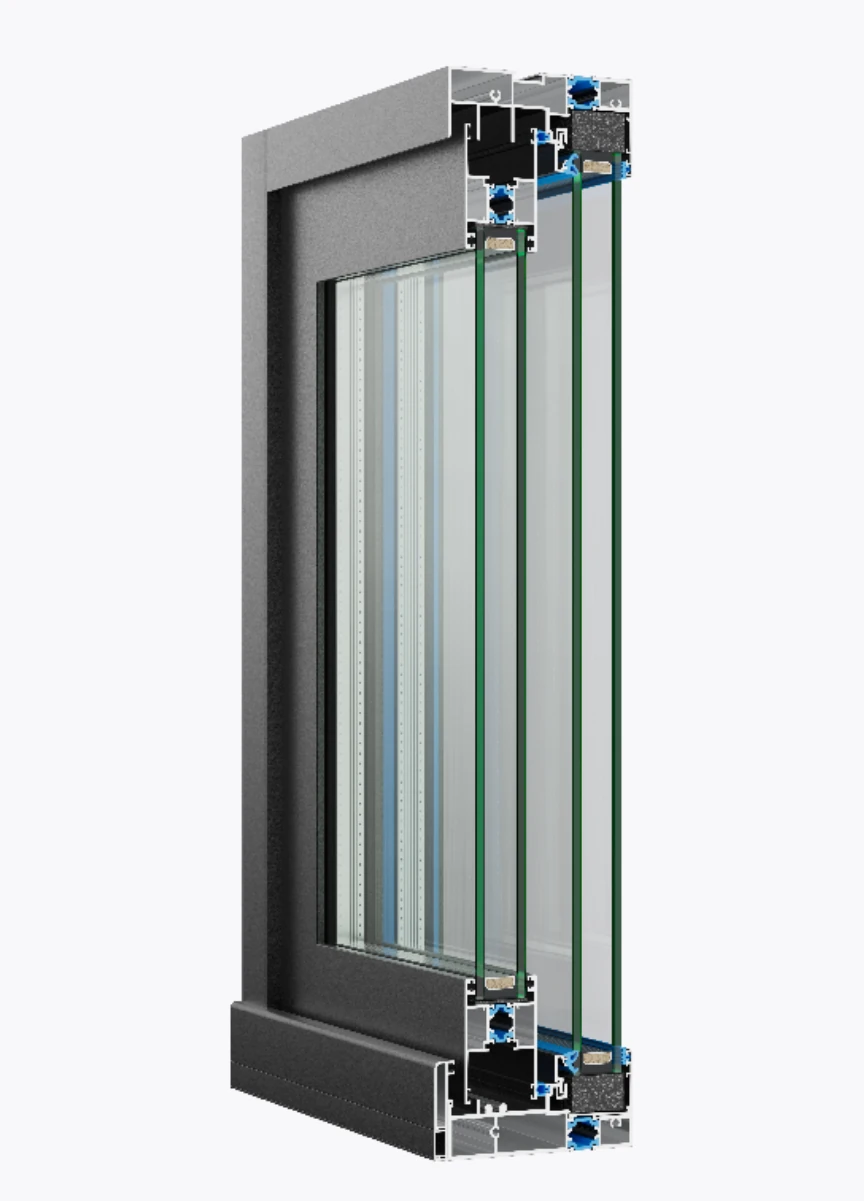

120 Side-Pressure Thermal-Break System Window
Design, construction and specifications
Designs & details
2 visual references
- Sound insulation
- 38 dB
- Airtightness
- q1 ≤ 0.5
- Thermal insulation
- K 2.0–2.2
- Watertightness
- P ≥ 700
- Wind pressure resistance
- P3 ≥ 9.0
Performance values are from the original catalog and have not been retested for this specification. Confirm performance for the selected glazing, dimensions and options.
Product specifications
Core specifications
- Main profile
- Primary aluminum T6063-T66
- Glazing configuration
- 5+20A+5 mm
- Hardware
- Hörmann double-row roller side-pressure hardware
- Profile wall thickness
- 1.8 + 3.0 mm
- Opening insect screen
- Not standard; inward-opening, side-folding or vertically retractable screens available
- Retractable screen size
- Standard arrangement within 1.3 × 2.4 m; larger sizes require confirmation
- Opening width
- Standard arrangement up to 1.3 m; wider openings require confirmation
- Optional guardrail
- 6+6 laminated glass guardrail or fixed guardrail
- Optional arrangement
- Fixed lower-light arrangement; confirm 125-series upgrade separately
Finishes & appearance
- Glazing bead / trim options
- Small square glazing bead
- Standard interior finishes
- Skyline Grey, Textured Grey, Textured Coffee
- Standard exterior finishes
- Skyline Grey, Textured Grey, Textured Coffee
Specification source: September 2026 specification sheet, page 2; unchanged construction and images: EOUXIN Chinese catalog, page 39 and adjacent scene page, pages 39, 40. Finish names are descriptive; confirm against an approved sample.
