120 Full-Section 2.0 Thermal-Break System Window
Design, construction and specifications
Designs & details
2 visual references
- Sound insulation
- 40 dB
- Airtightness
- q1 ≤ 0.5
- Thermal insulation
- K 2.0–2.2
- Watertightness
- P ≥ 700
- Wind pressure resistance
- P3 ≥ 9.0
Performance values are from the original catalog and have not been retested for this specification. Confirm performance for the selected glazing, dimensions and options.
Product specifications
Core specifications
- Main profile
- Primary aluminum T6063-T66
- Profile wall thickness
- 2.0 mm
- Optional insect screens
- Side-folding screen, vertical two-fold or three-fold screen, removable integrated PET screen
- Fixed glazing
- 5+27A+5 mm
- Opening sash glazing
- 5+20A+5 mm
- Hardware
- Black CMECH hardware with rosette-free handle
Finishes & appearance
- Glazing bead / trim options
- Bevelled glazing bead
- Standard interior finishes
- Skyline Grey A, Carbon Black, Star Coffee
- Standard exterior finishes
- Skyline Grey A, Star Coffee, Carbon Black
- Optional interior finishes
- Jazz White

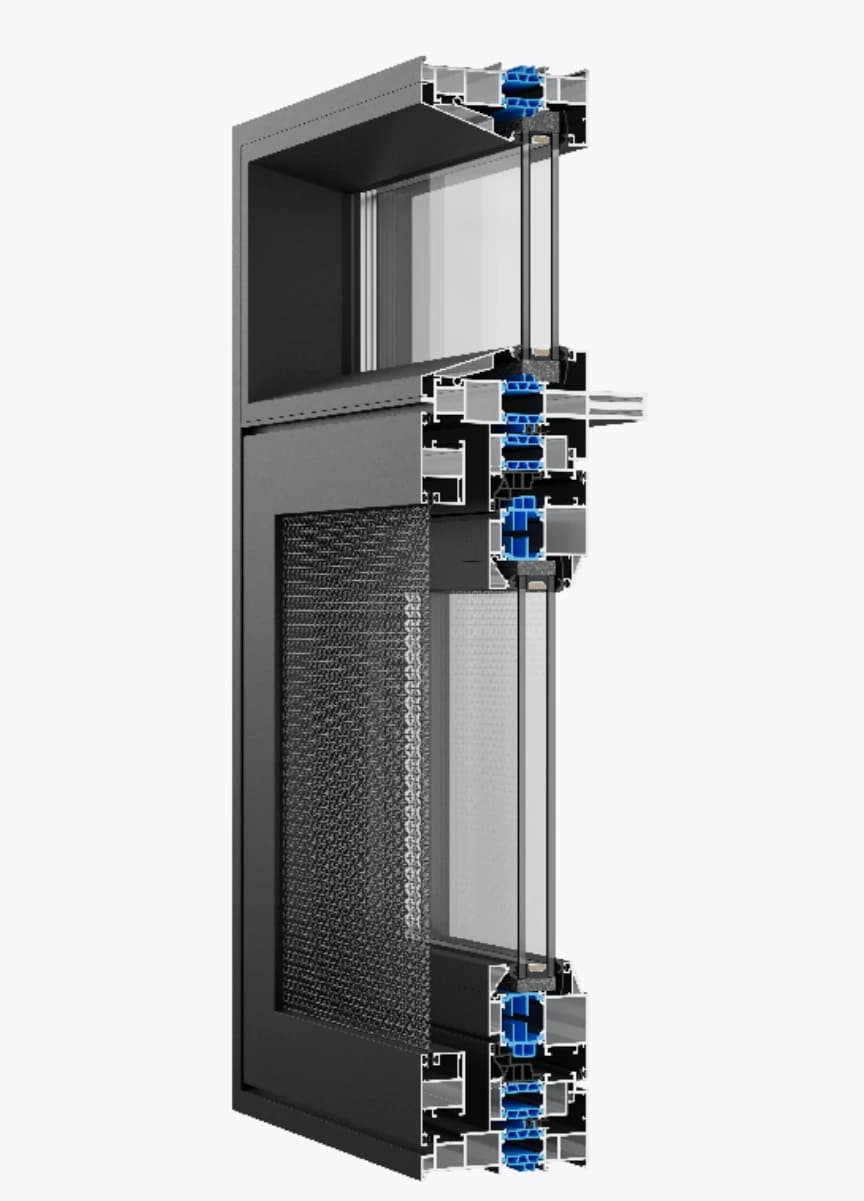

Construction & detailing
- Glazing bead construction
- Closed hooked glazing bead
- Reinforced mullion
- Internal reinforcing strip
- Sealing system
- Five sealing layers
- Sealant injection
- Pin-jointed sealant injection
- Drainage
- Floor-drain-style drainage
- Weather seals
- Jiangyin Haida weather seals
- Glazing sealing method
- Interior and exterior glazing gaskets
Specification source: September 2026 specification sheet, page 1; unchanged construction and images: EOUXIN Chinese catalog, page 15 and adjacent scene page, pages 9, 10, 11, 12, 13, 15, 16. Finish names are descriptive; confirm against an approved sample.
